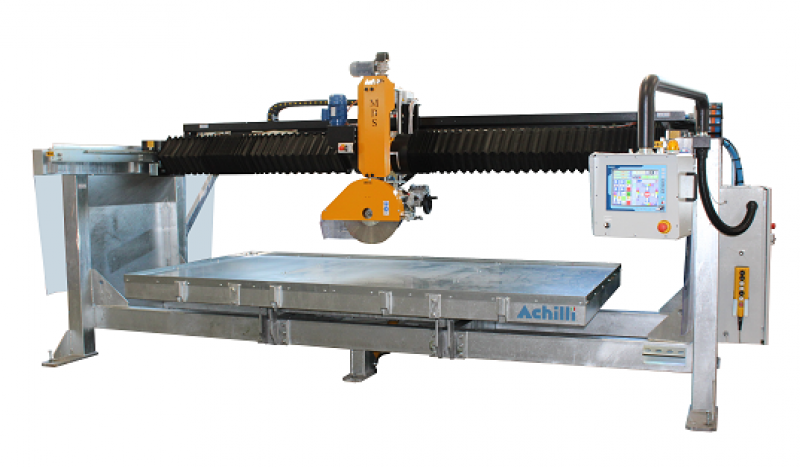

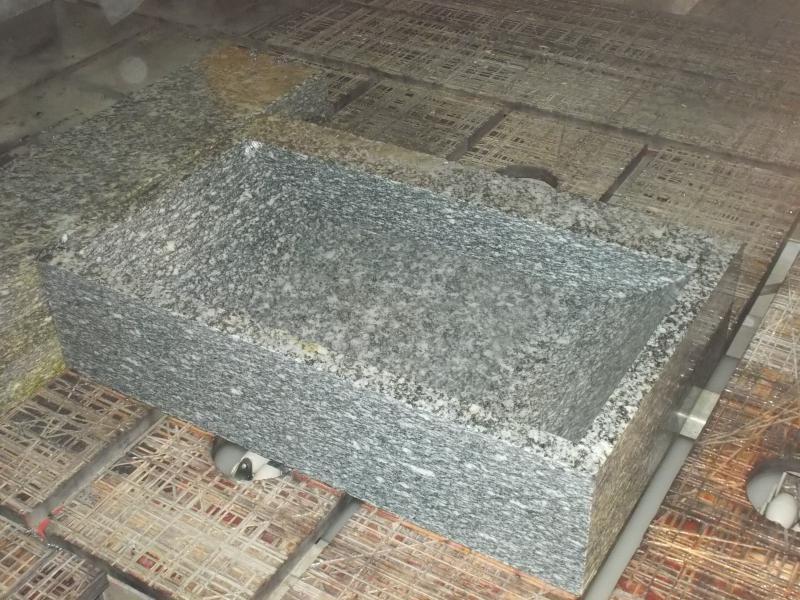

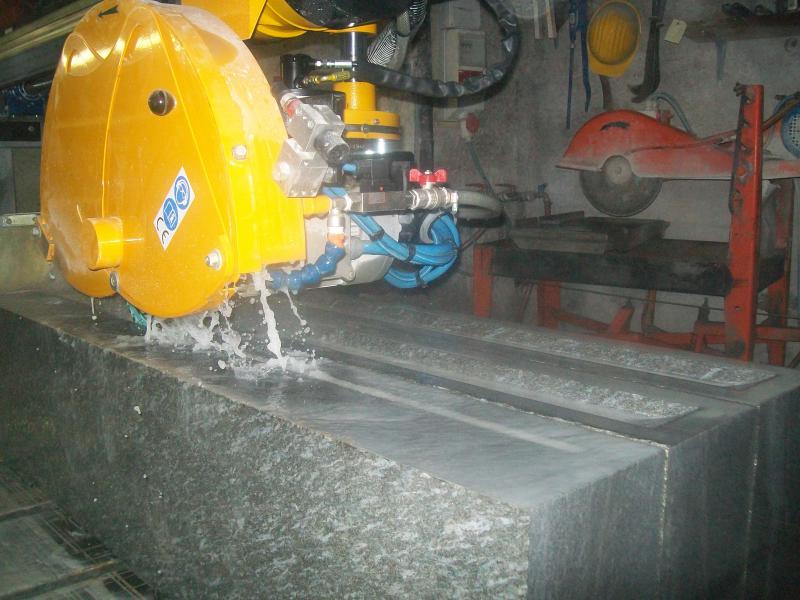

Monoblock bridge saw MBS TS

CNC bridge saw for interpolated angle cutting in all directions

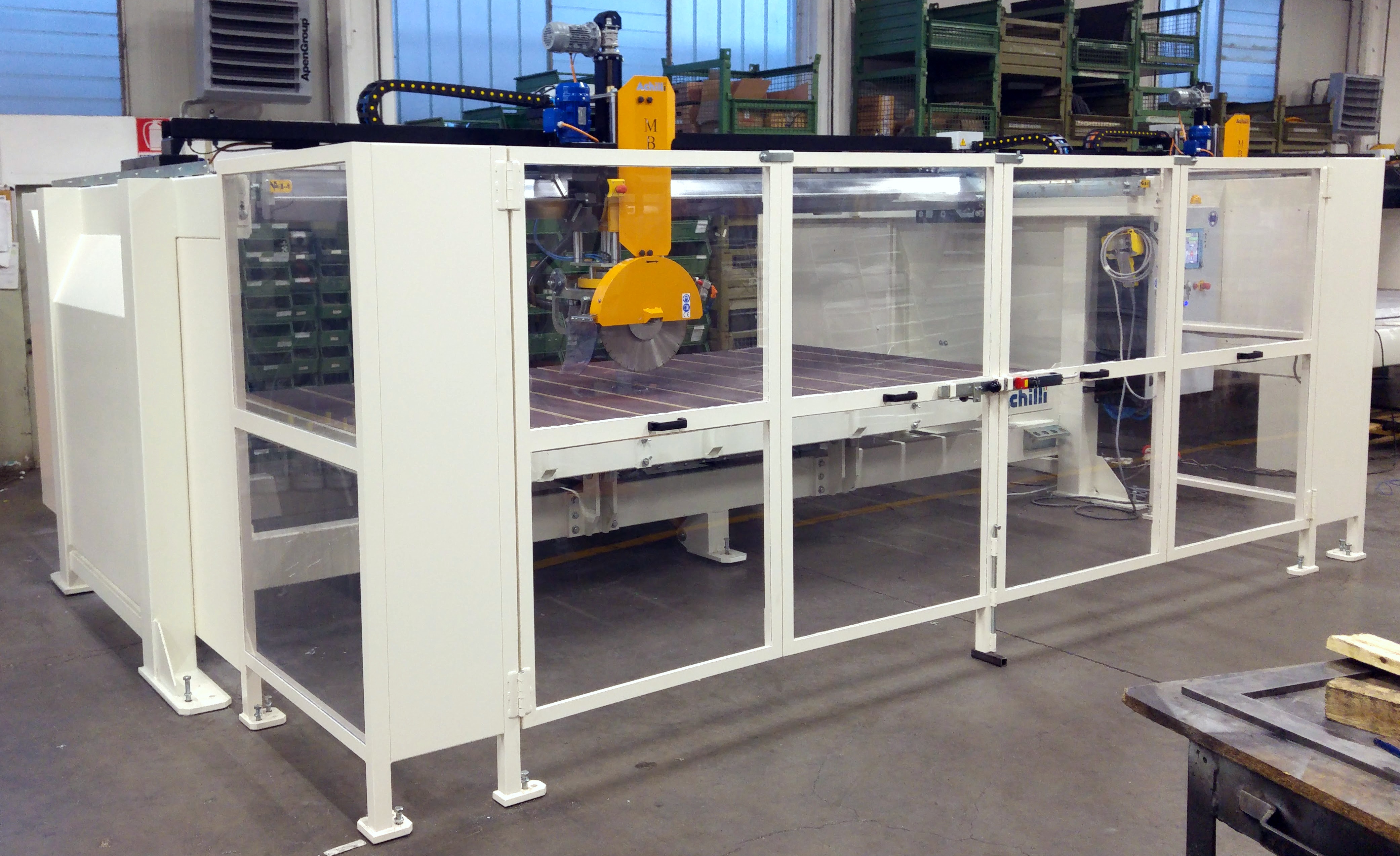

Monoblock bridge saw MBS TS

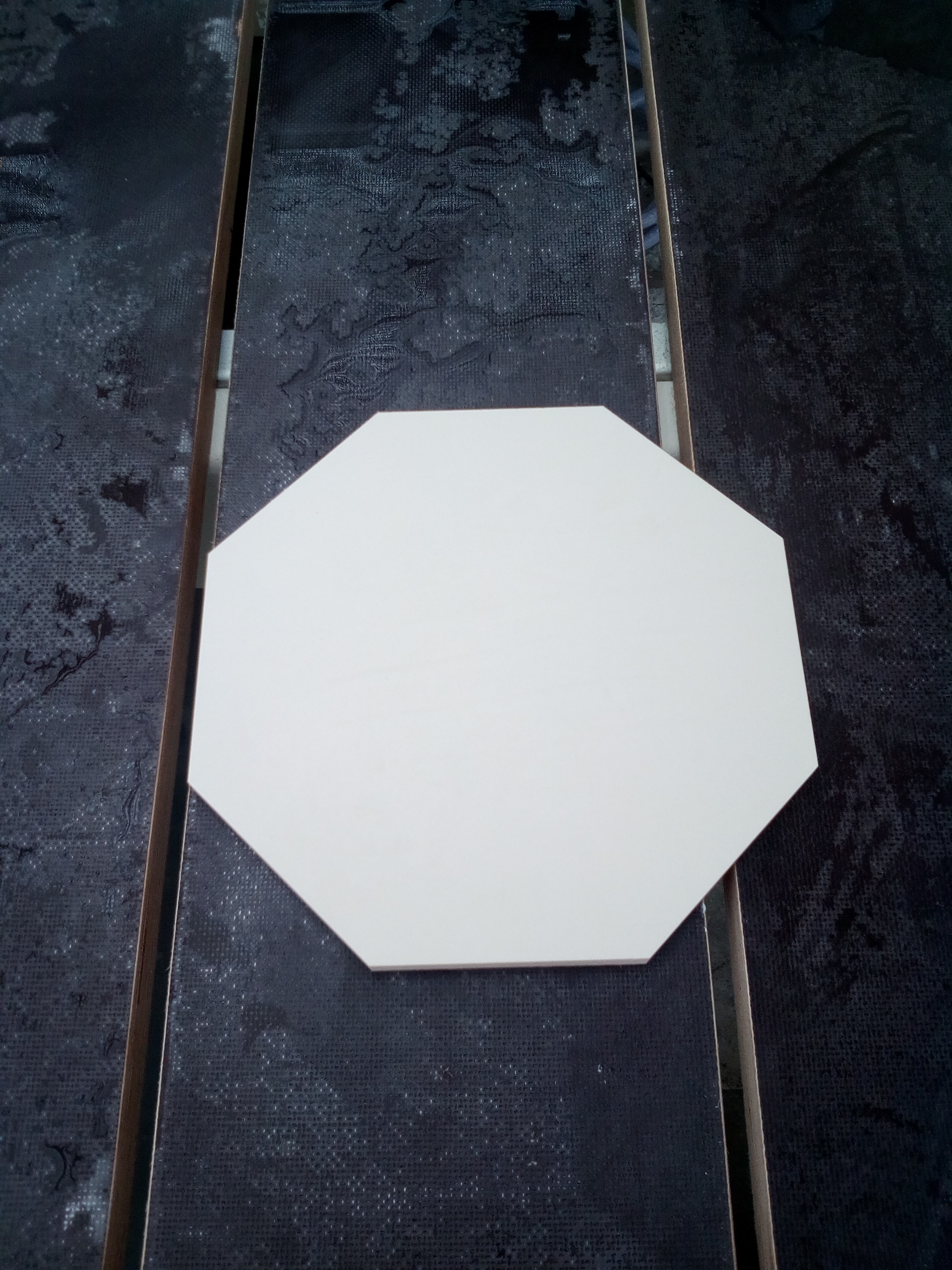

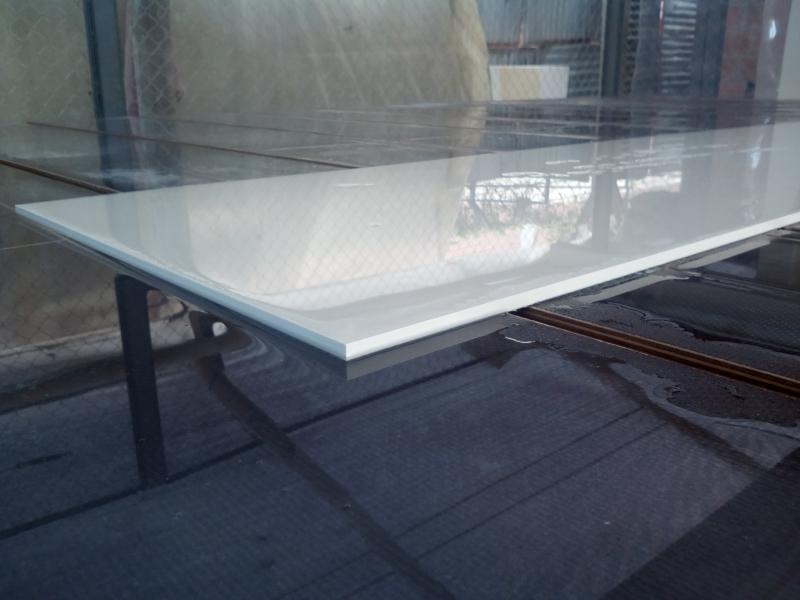

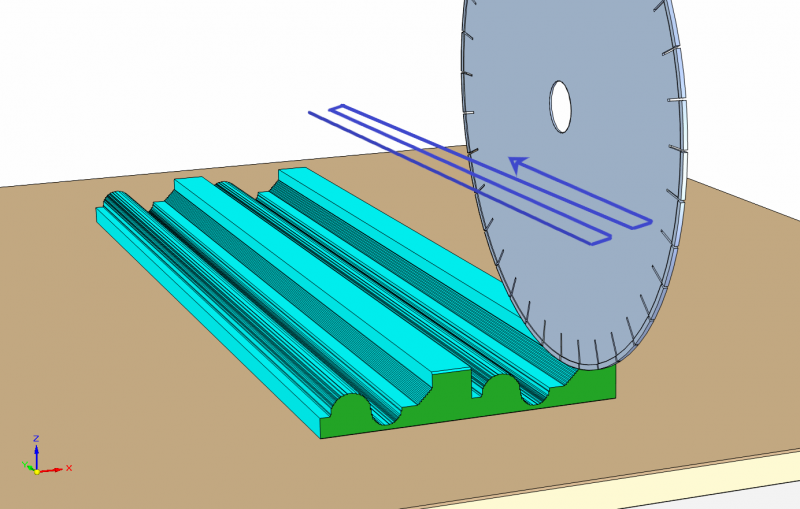

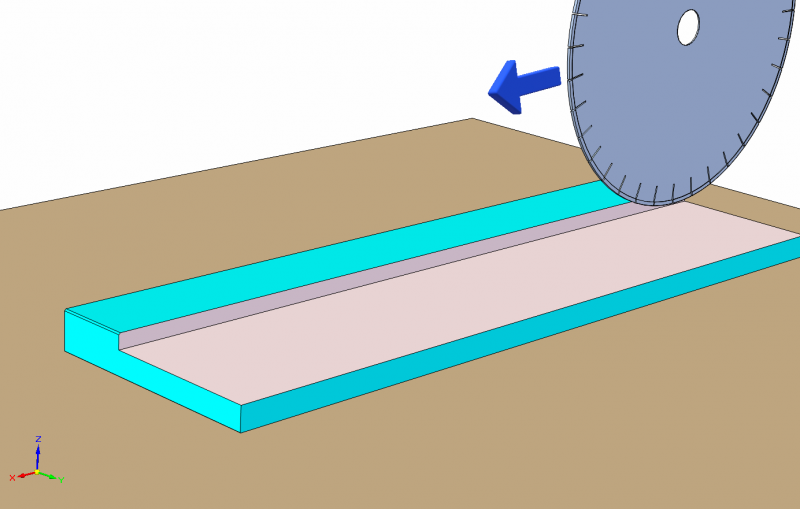

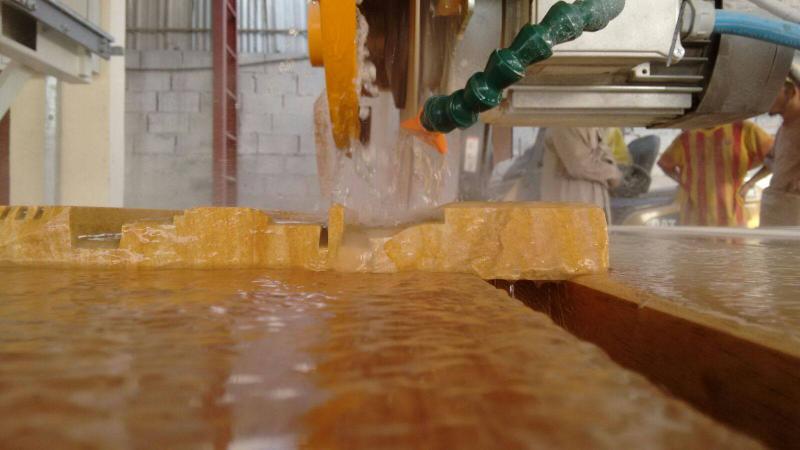

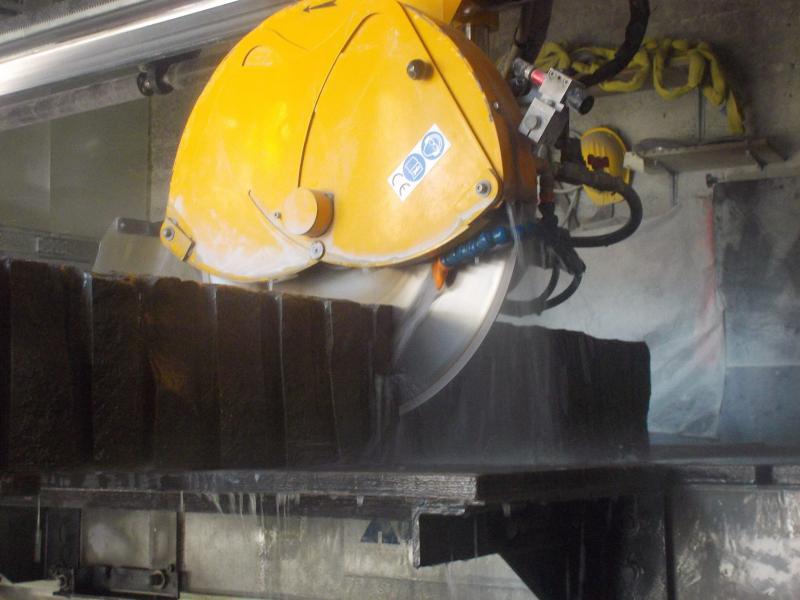

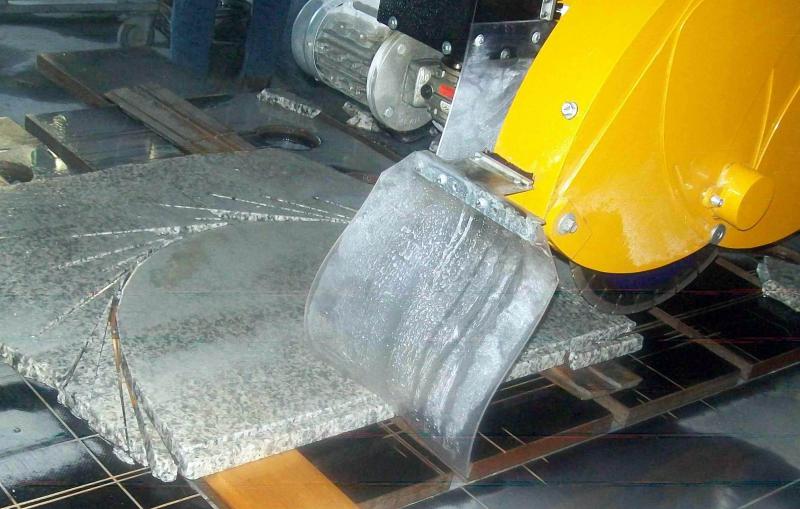

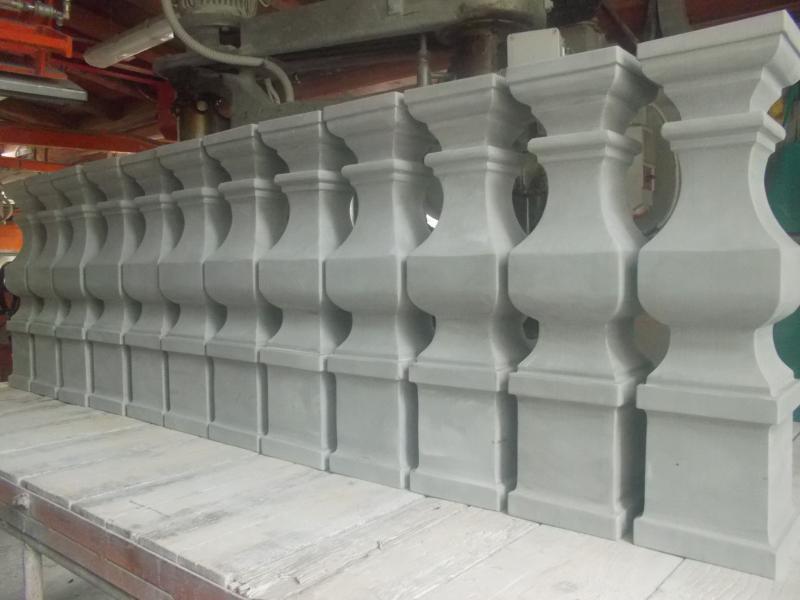

MBS TS is our best-selling bridge saw; the perfect combination of simplicity, flexibility and durability. The installation is easy and does not require foundation. The machine is equipped with a compressed, rectified and chromed “active beam” guaranteeing the utmost accuracy. The rotation of the head allows to perform interpolated angle cutting in all directions.

Request Information
Tailored Achilli machines
Contact us for details

Request customization

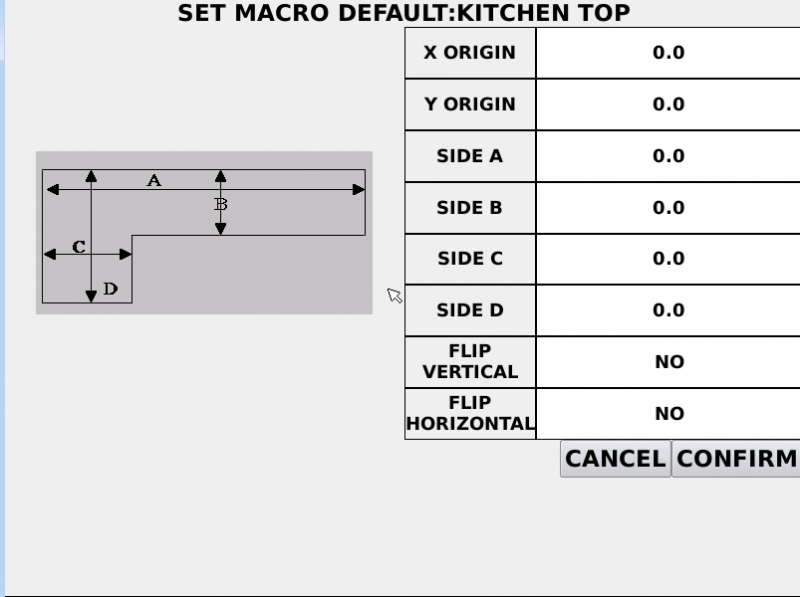

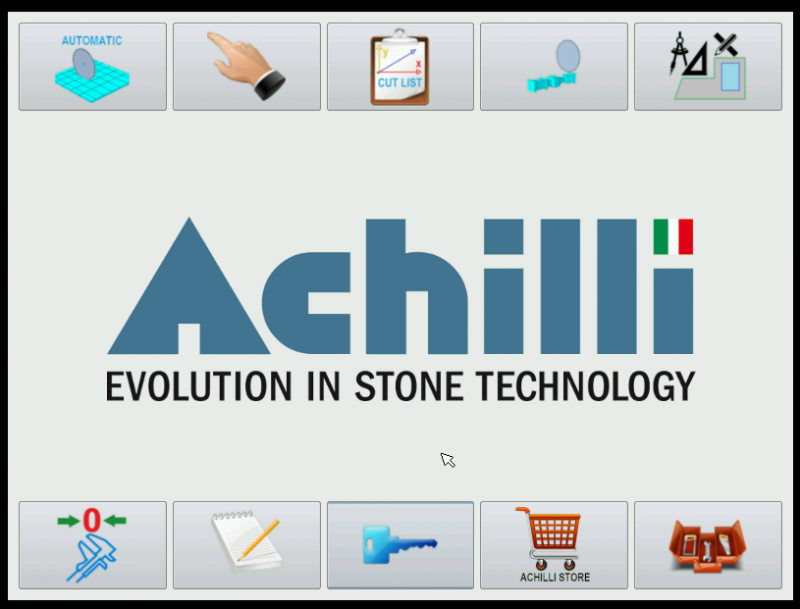

CNC Control

CNC Control

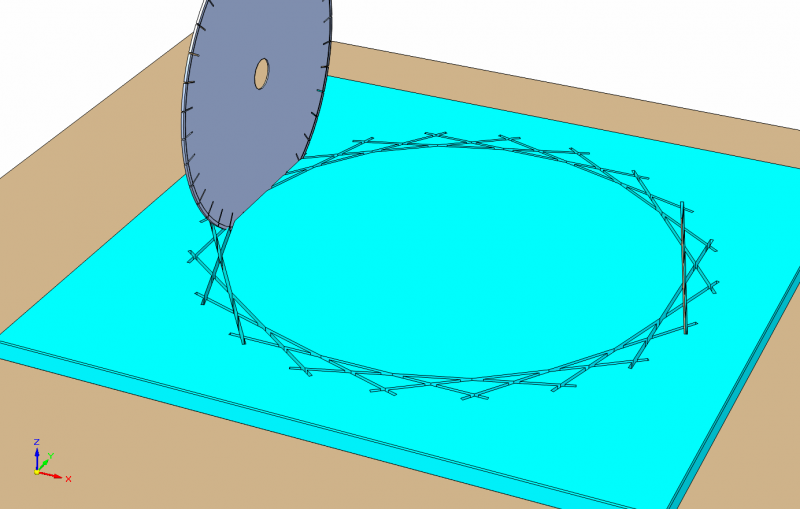

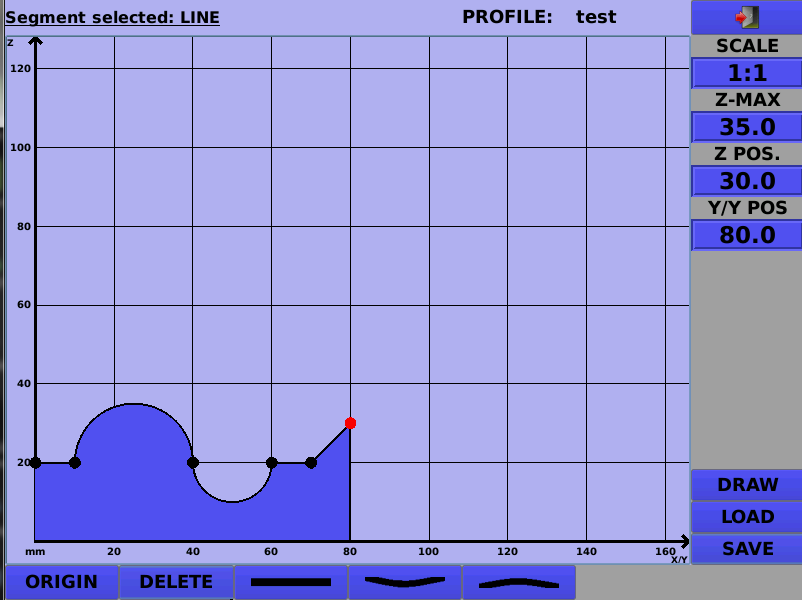

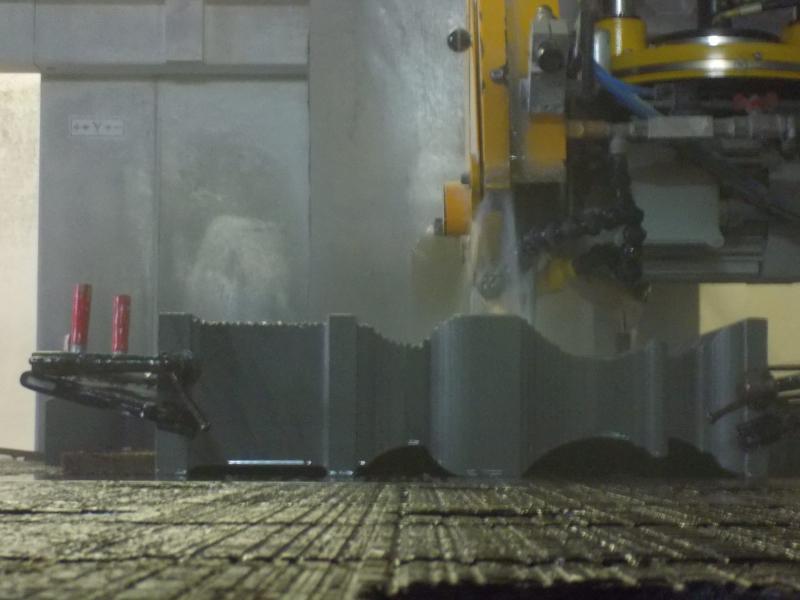

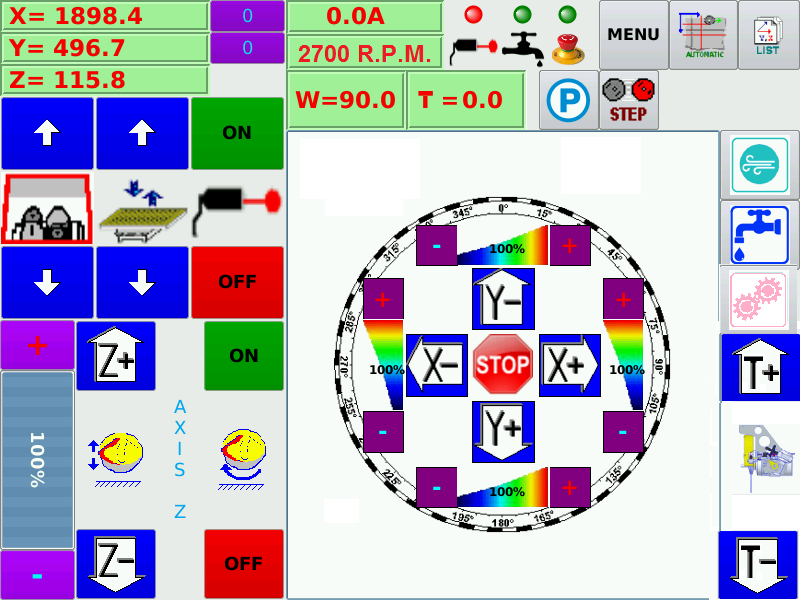

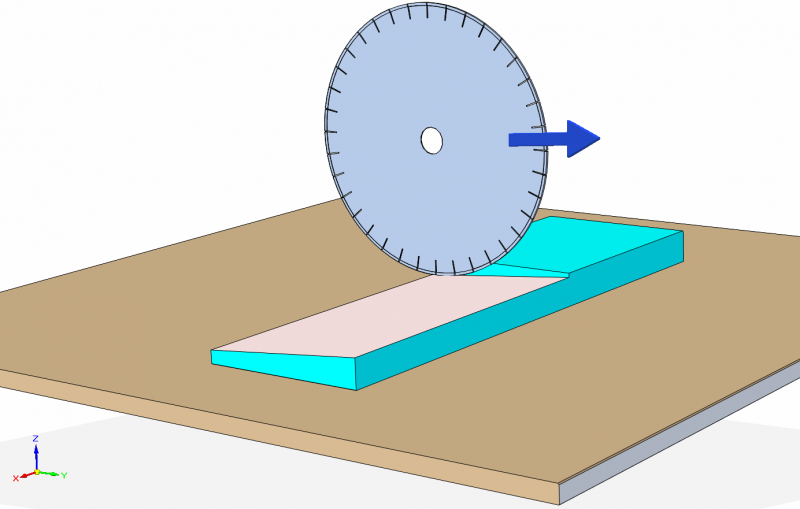

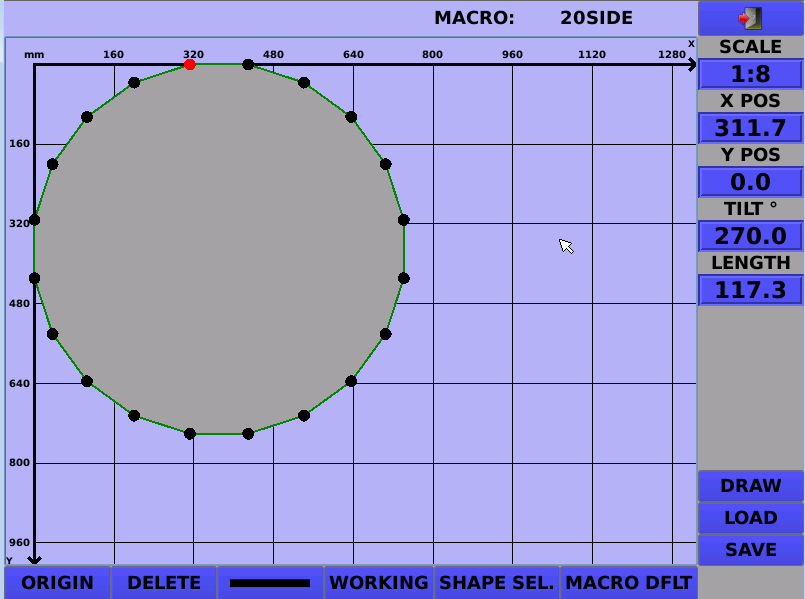

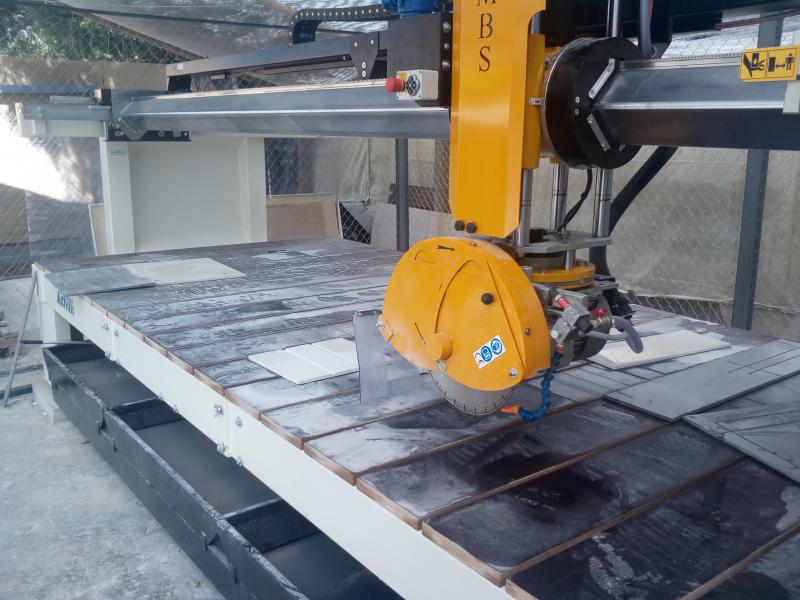

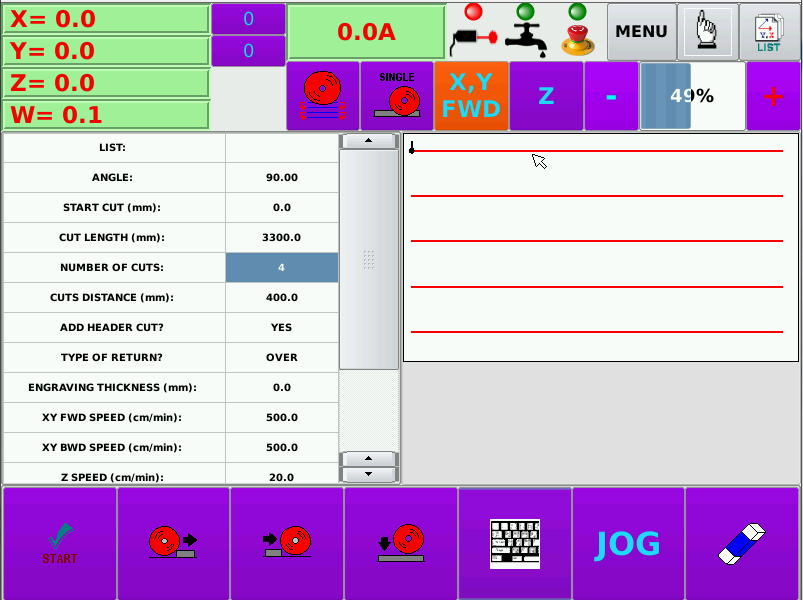

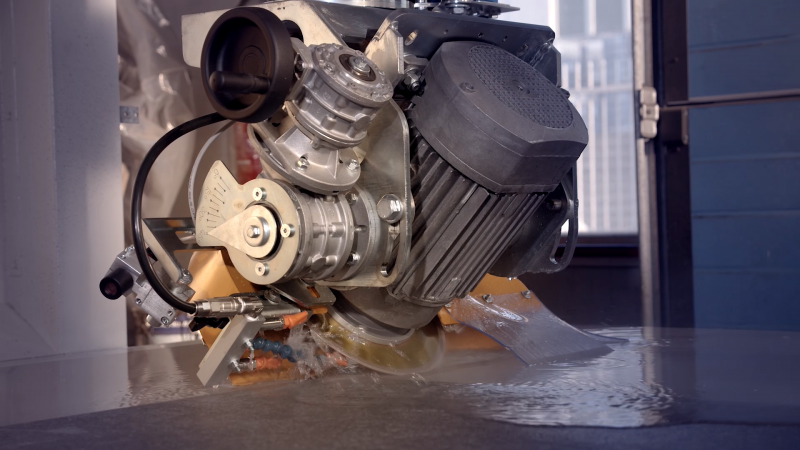

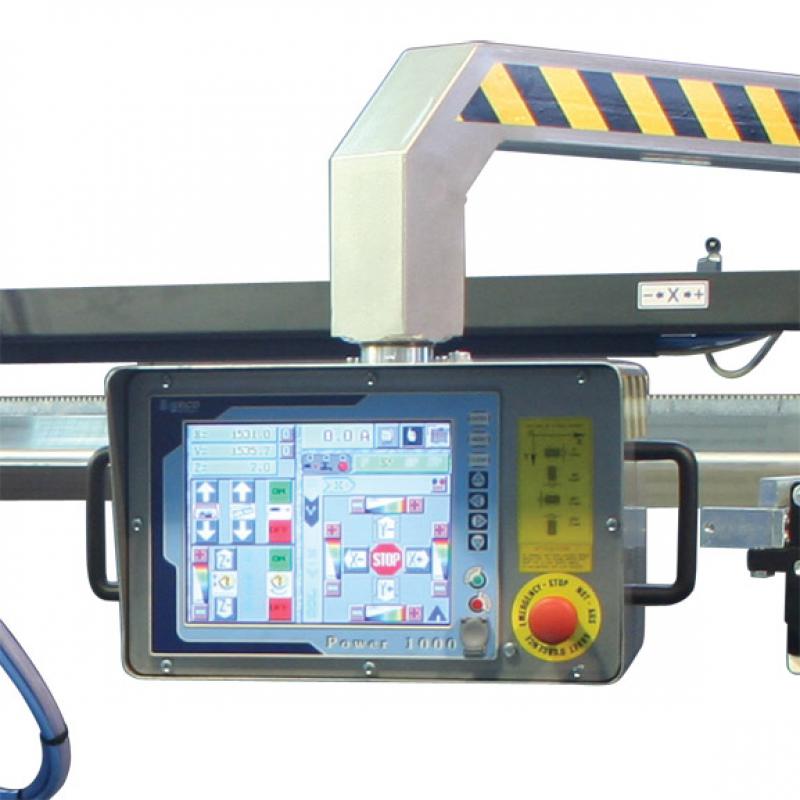

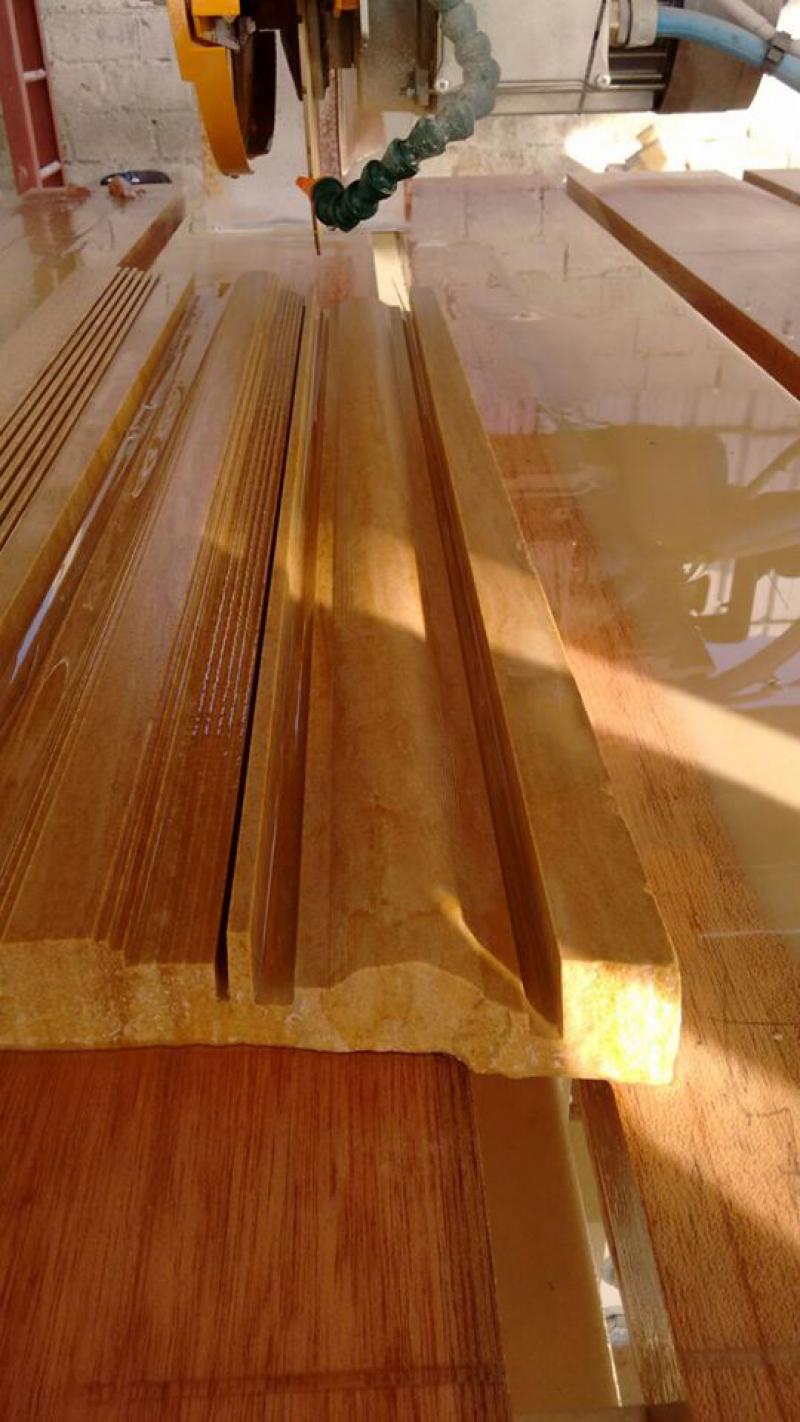

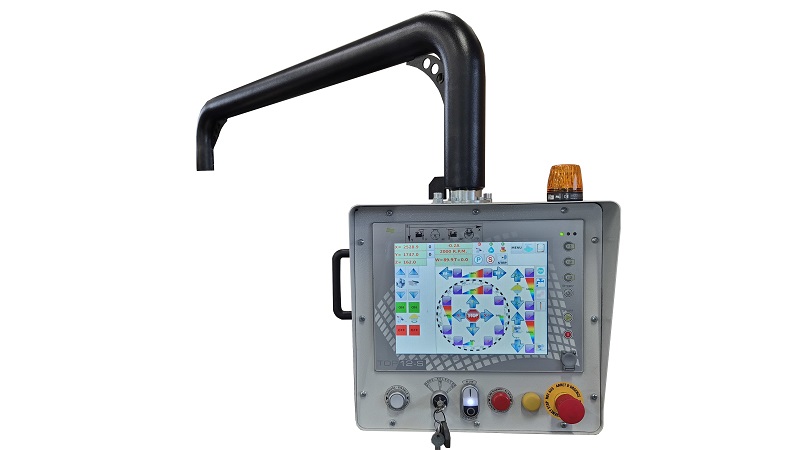

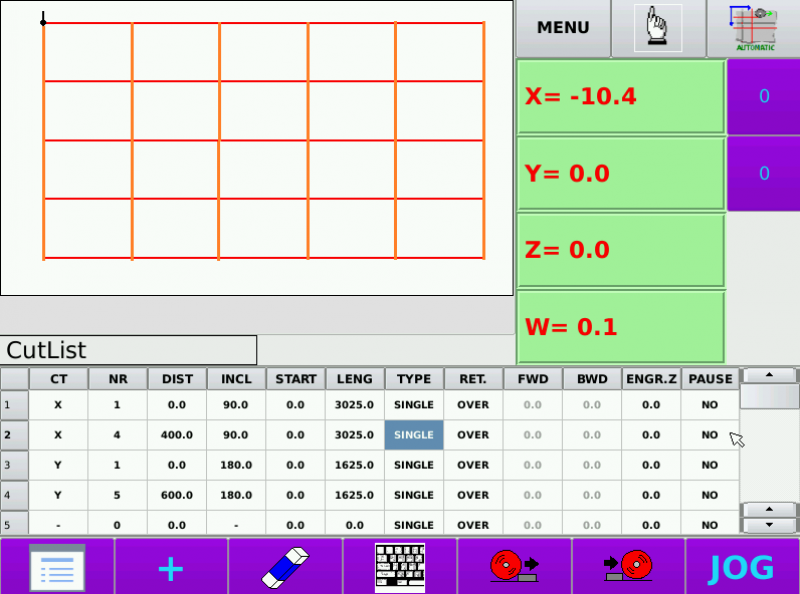

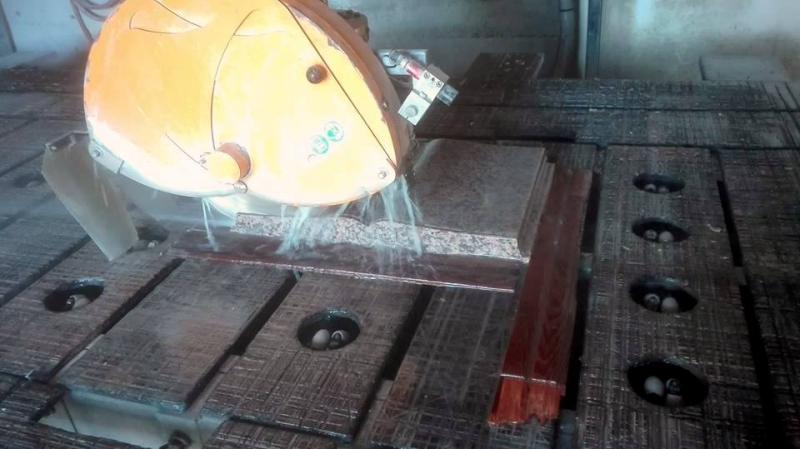

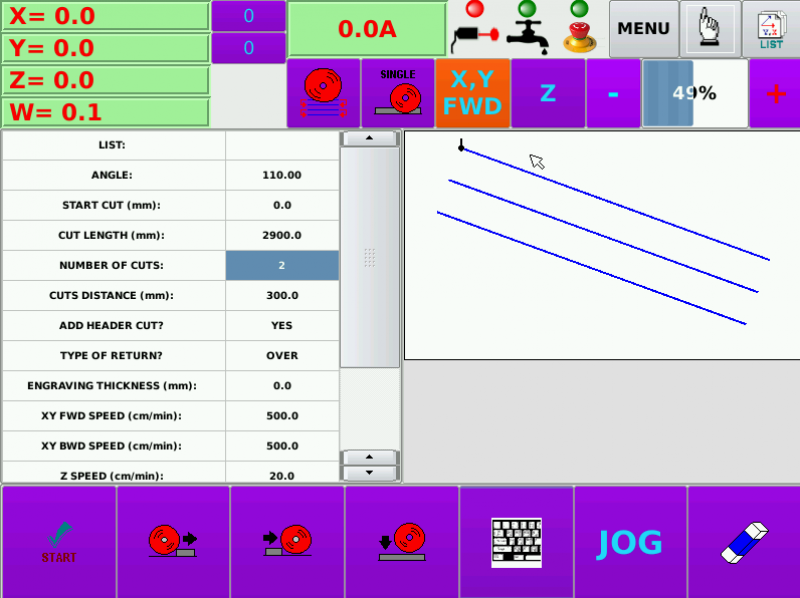

CNC axis control unit with touch-screen colour display for cuts programming. It allows the automatic execution of cutting programs without manual intervention.

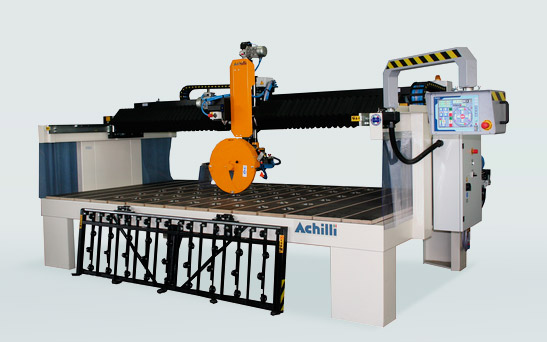

Structure

Structure

Steel frame, sandblasted and ceramic coated (hot-dip galvanizing treatment upon request).

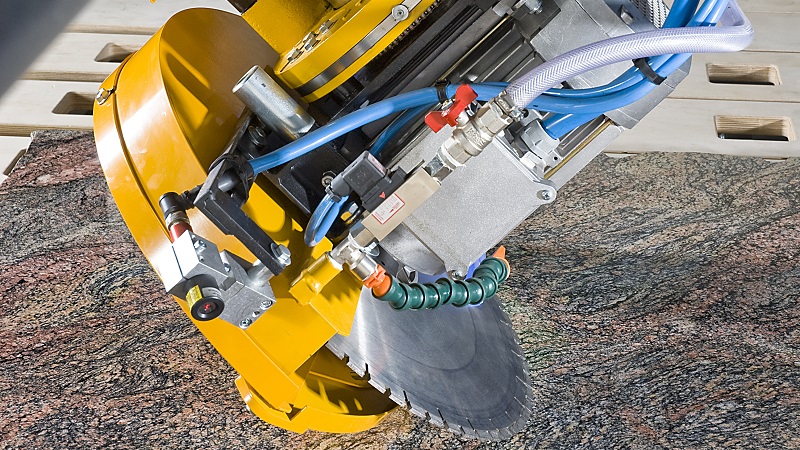

Head tilt

Head tilt

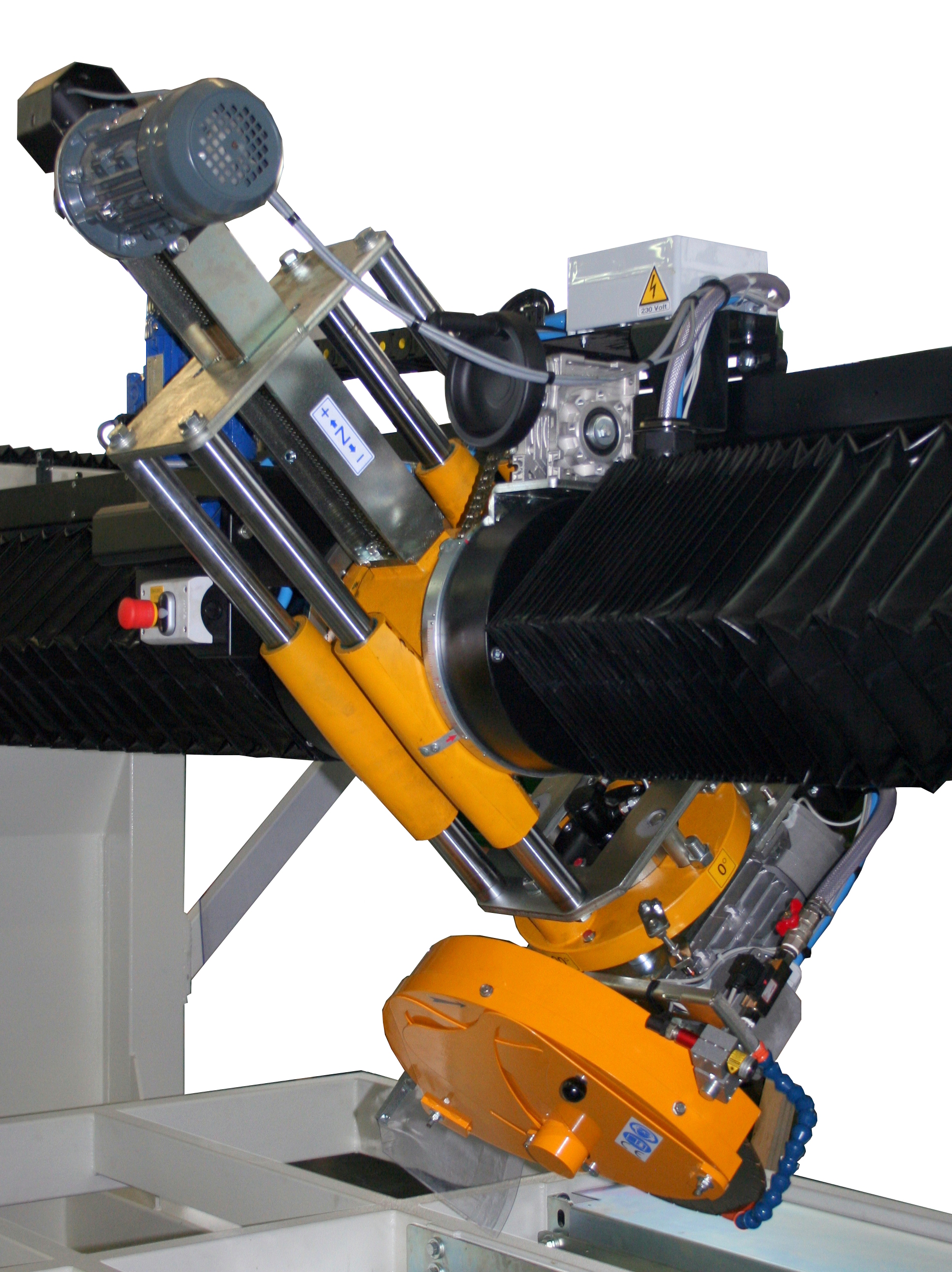

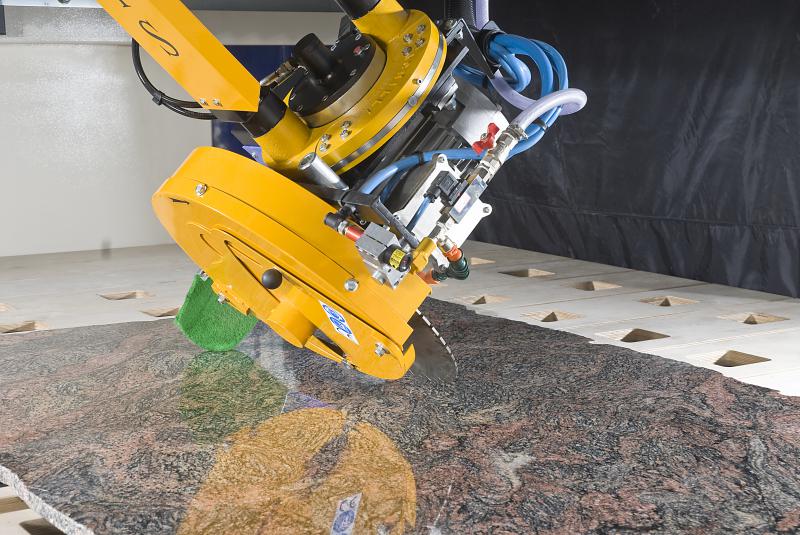

Manual head tilt from 90° to 45° along X axis, for inclined cuts.

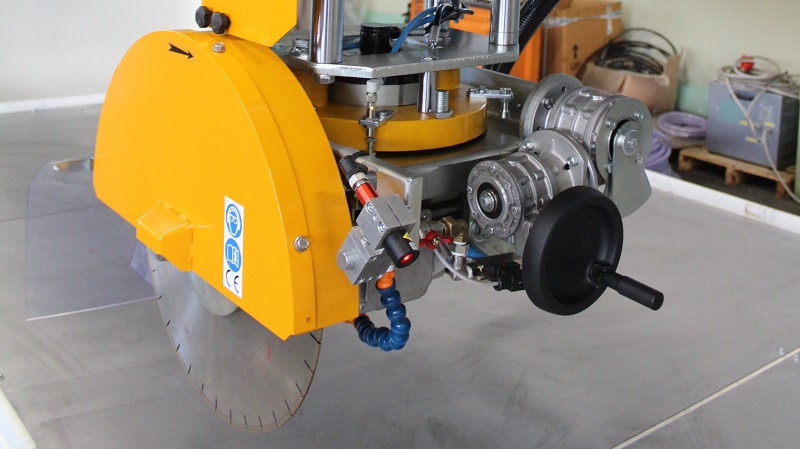

Head rotation

Head rotation

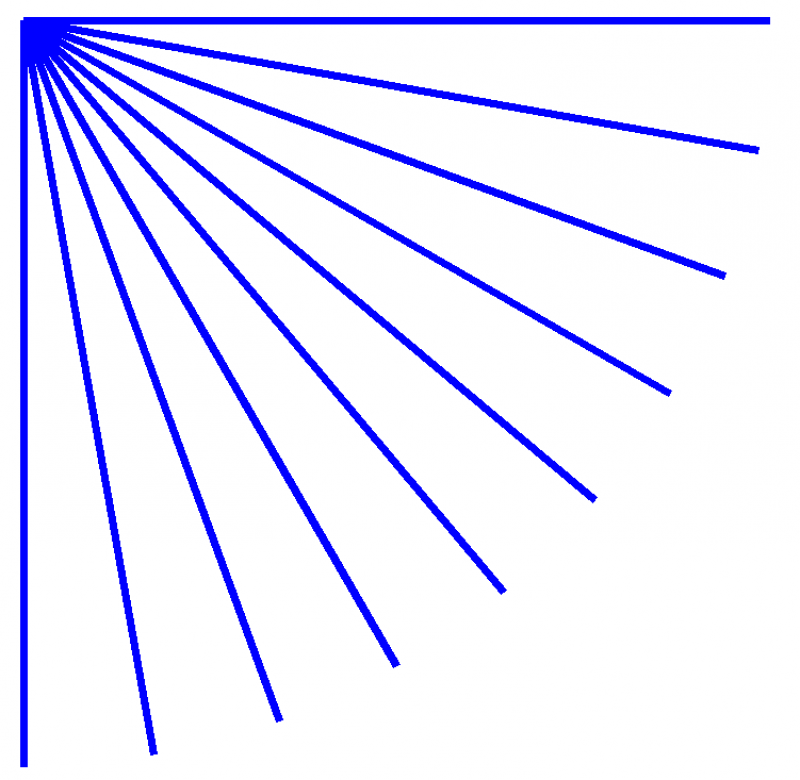

Manual or automatic rotation of the head to perform interpolated angle cutting and diagonal cuts in all directions. Hydraulic lock of main motor rotation by push buttons.

Worktable

Worktable

Available with fixed, tilting and/or rotating worktable.

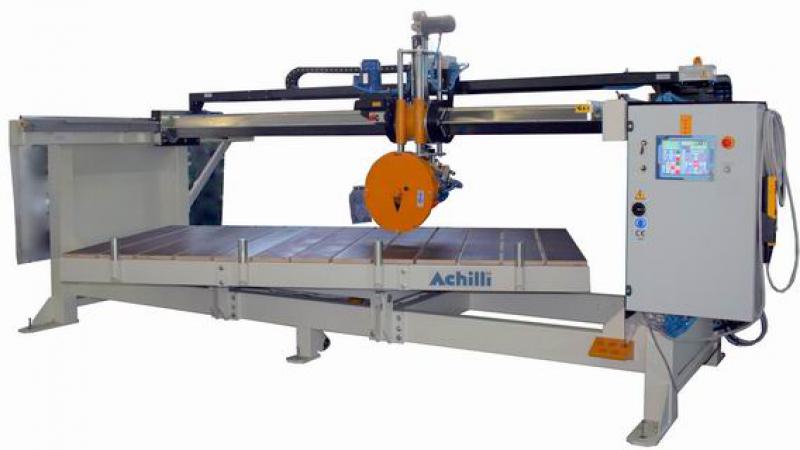

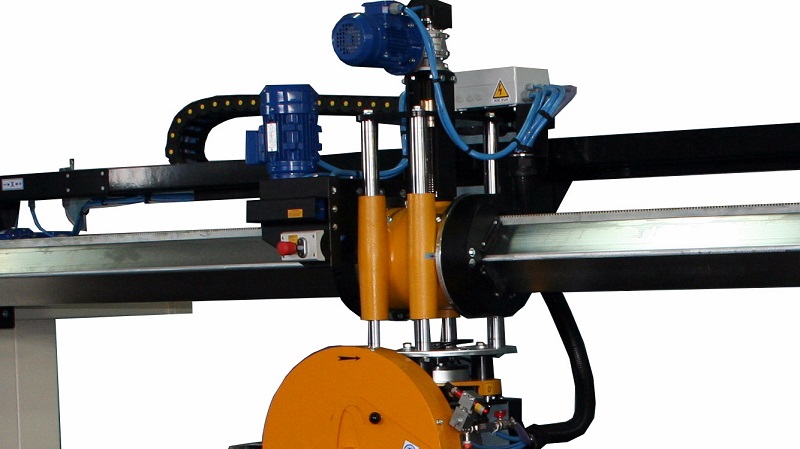

Head motion

Head motion

Motorized head travel with variable speed on three axes (X-Y-Z). Head travel on steel guides with angled rack and pinion to ensure maximum precision. Head raise and lower on chromed steel columns and a threaded rod.

Advantages

MBS TS is our historical monoblock bridge saw with CNC axis control unit for cuts programming:

  • Fully customizable according to customer requirements;
  • Monoblock structure for easy installation;
  • The perfect cutting precision is guaranteed by the special design of the beam;
  • Manual or automatic head rotation to perform interpolated angle cutting in all directions.
Technical details
X-axis travel 3000 / 3500 / 3600 mm
Y-axis travel 1930 mm
Z-axis travel 380 mm
Worktable dimensions 4600x2200 mm
Max. diamond blade diameter 350-500 mm
Blade bore size 50 mm
Manual head tilt 90° - 45°
Head rotation

0°- 90°- 180°- 270° / 0°- 340°

Main motor power

7.5kW = 10HP /

11kW = 15HP

Main motor rotation speed  1400 rpm 50Hz – 1700 rpm 60Hz
Main motor variable speed (optional) 700 - 3400 rpm
Standard voltage/frequency

400V-50/60Hz  /

230V-60Hz  3ph.

Accessories

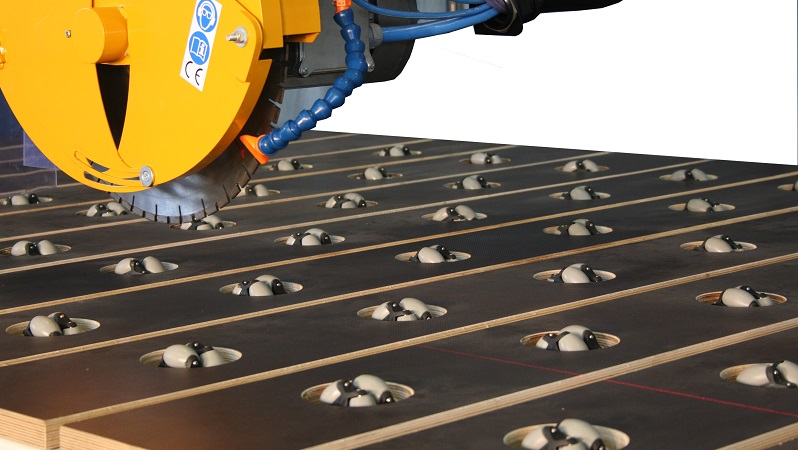

Pop-up rollers

Pop-up rollers

Hydraulic motorized pop-up rollers for easy slab loading and positioning.

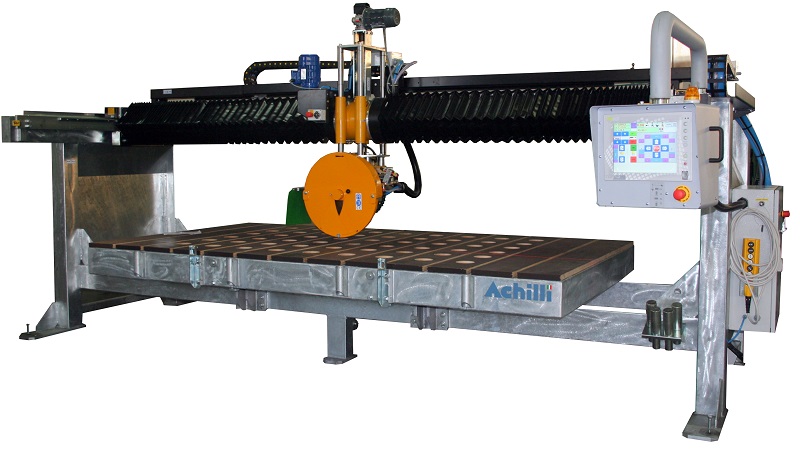

Galvanized frame

Galvanized frame

Hot-dip galvanized frame for maximixe the machine durability.

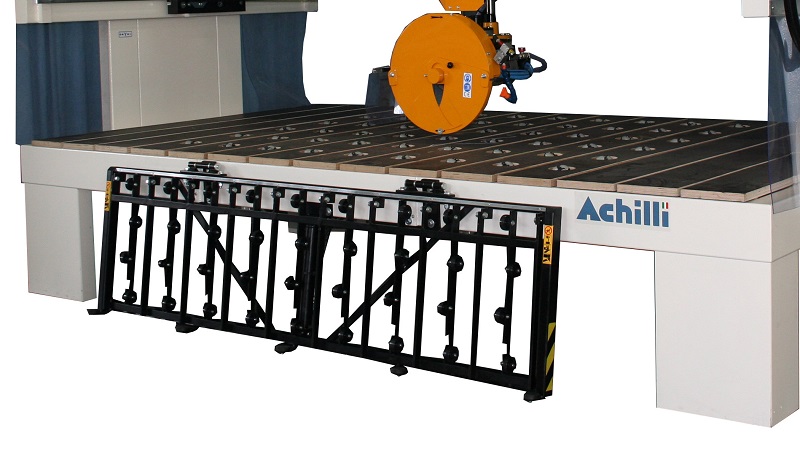

Slab loader

Slab loader

Motorized slab loader with hydraulic tilt permitting easy slab loading and off loading from machine’s worktable, in machines with fixed worktable.

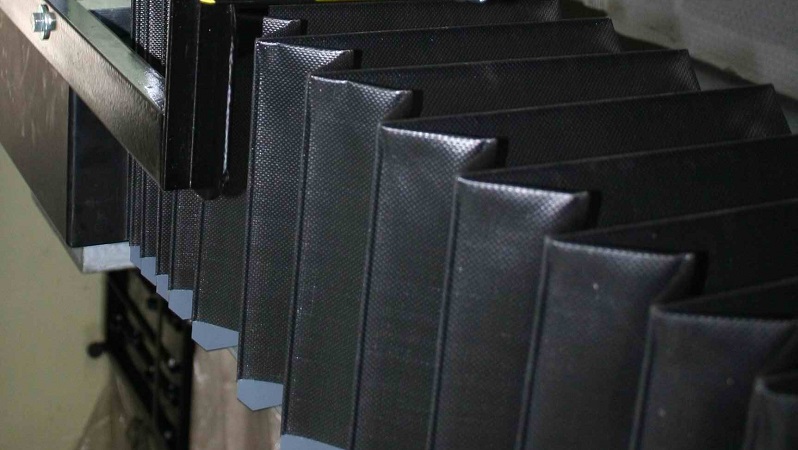

Protection bellows

Protection bellows

Protecton bellows for X and/or Y axis.

Pedant control

Pedant control

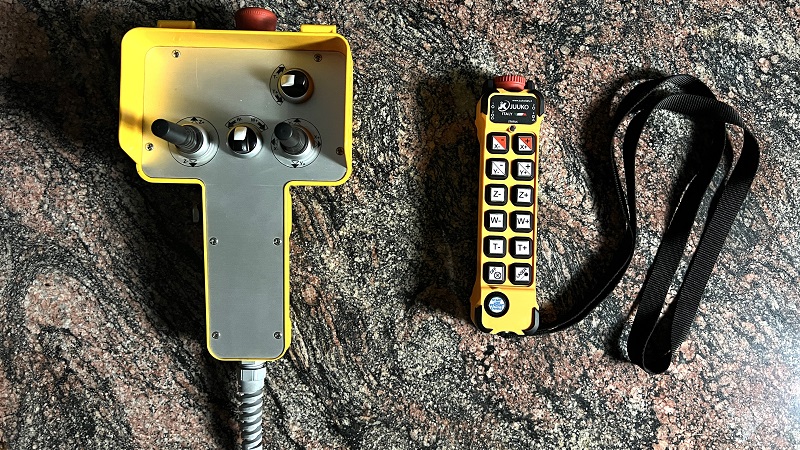

Cable or wireless pendant control enabling quick head movement when the operator is working far from the control position.

Laser

Laser

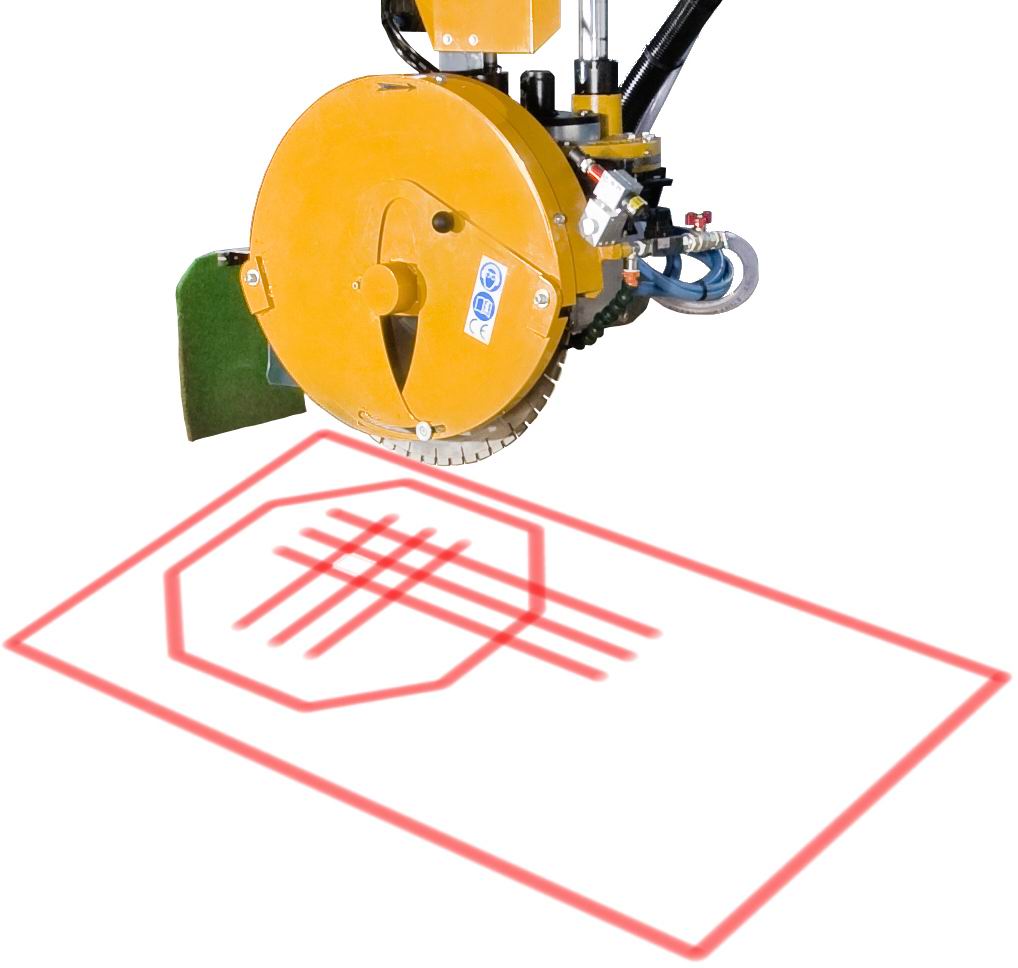

Laser alignment device mounted on the head shows the blade’s cutting line.

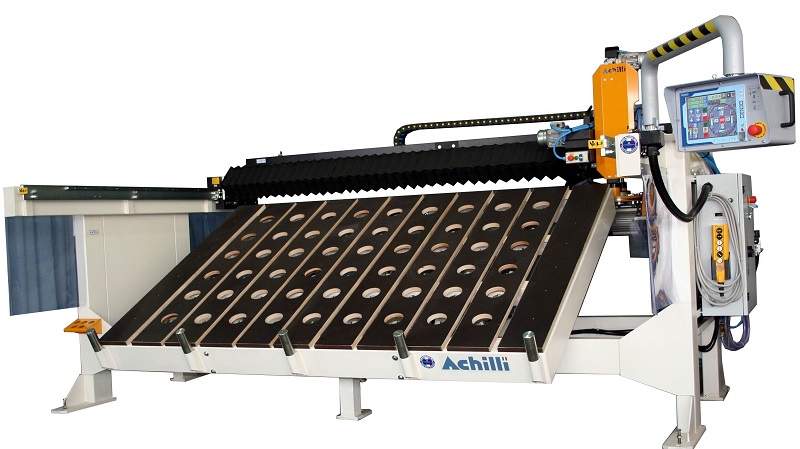

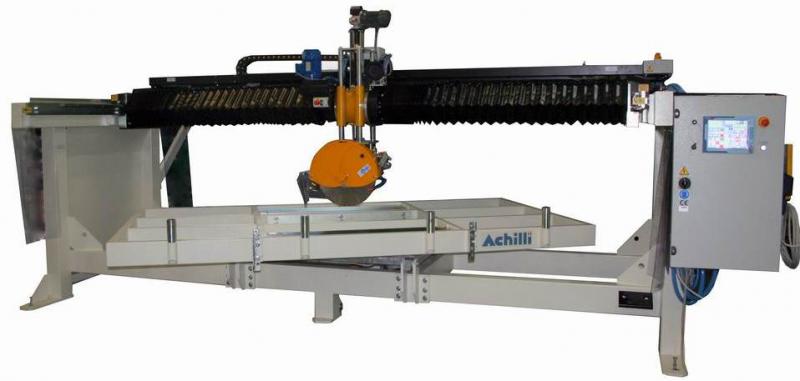

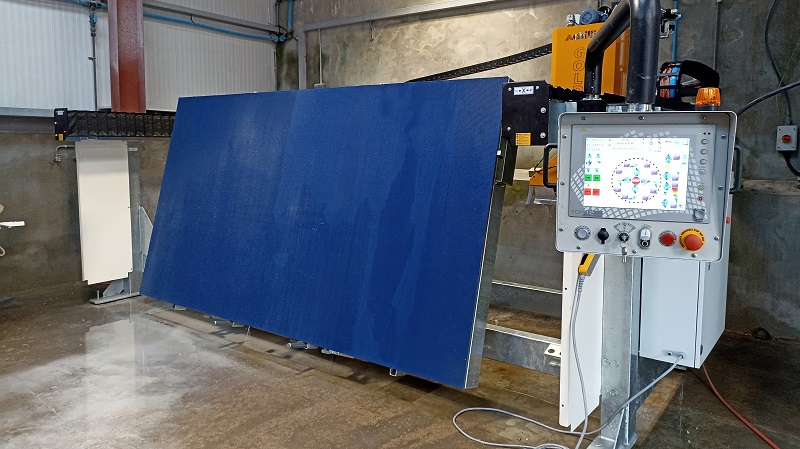

Tilting worktable

Tilting worktable

Motorized and hydraulic worktable tilt for easy slab loading. Worktable dimensions 3000/3500x1900mm.

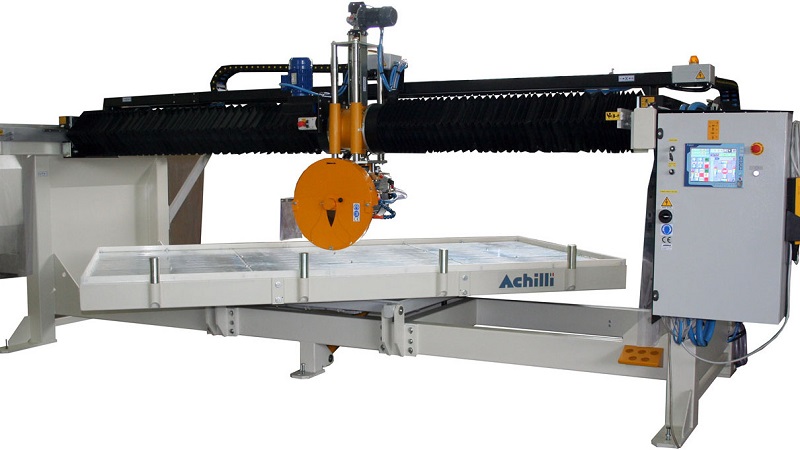

Rotating table

Rotating table

Available with rotating worktable with free lock and positive lock at ±180°, ±90°, ±45° e 0°.

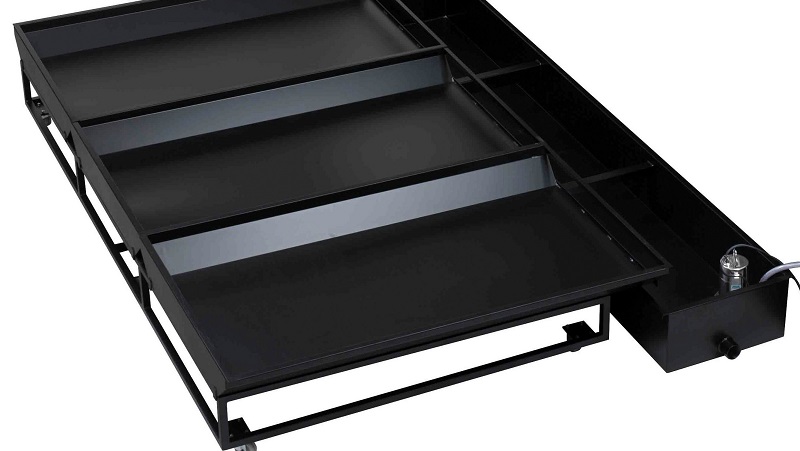

Water tank

Water tank

Water tank with built in recycling pump for model with fixed worktable.

Traditional version

Traditional version

Possibility to provide bridge and rails for installation on existing walls.
