Mini bridge saw TFM

Stone saw with fixed bridge for stone, quartz and ceramic slabs

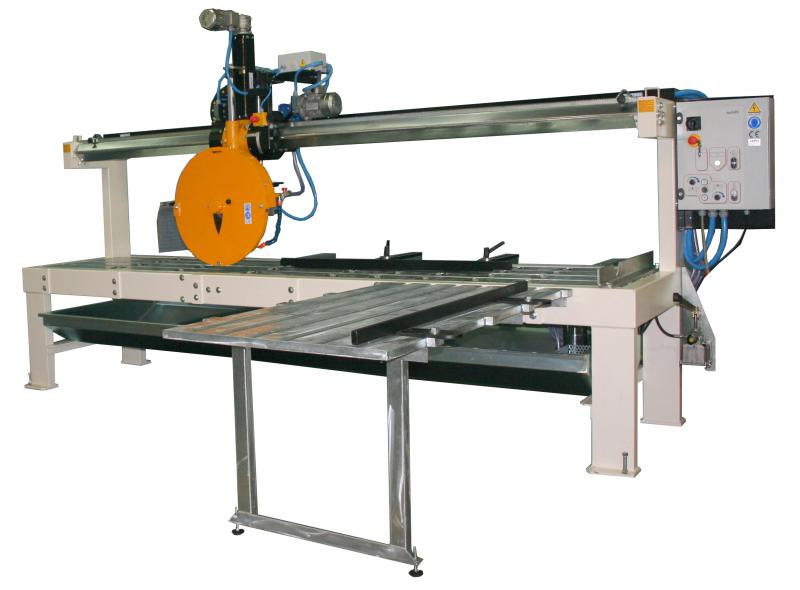

Mini bridge saw TFM

Monoblock saw with fixed bridge for stone and sintered material slabs equipped with a compressed, rectified and chromed “active beam” guaranteeing the utmost accuracy. The worktable extensions widen the worktable facilitating the positioning of large slabs and the head feed is motorized with variable speed adjustment in both directions. A special optional device permits to carry out parallel cuts.

Request Information
Tailored Achilli machines
Contact us for details

Request customization
Structure

Structure

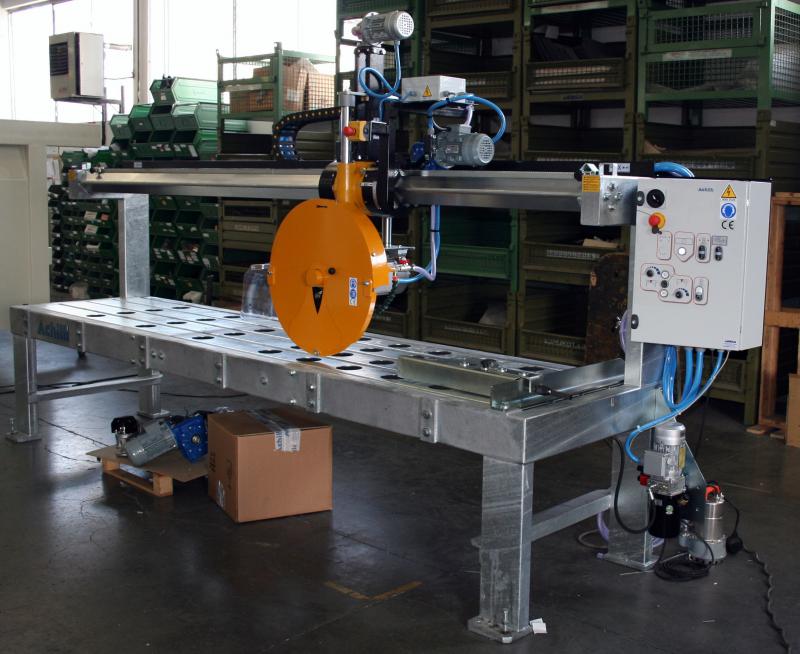

Steel frame, sandblasted and ceramic coated (hot-dip galvanized upon request).

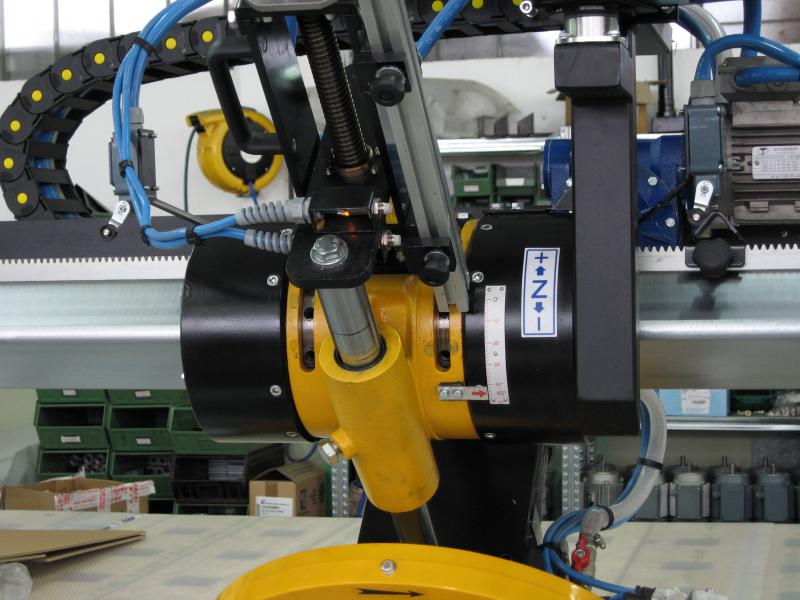

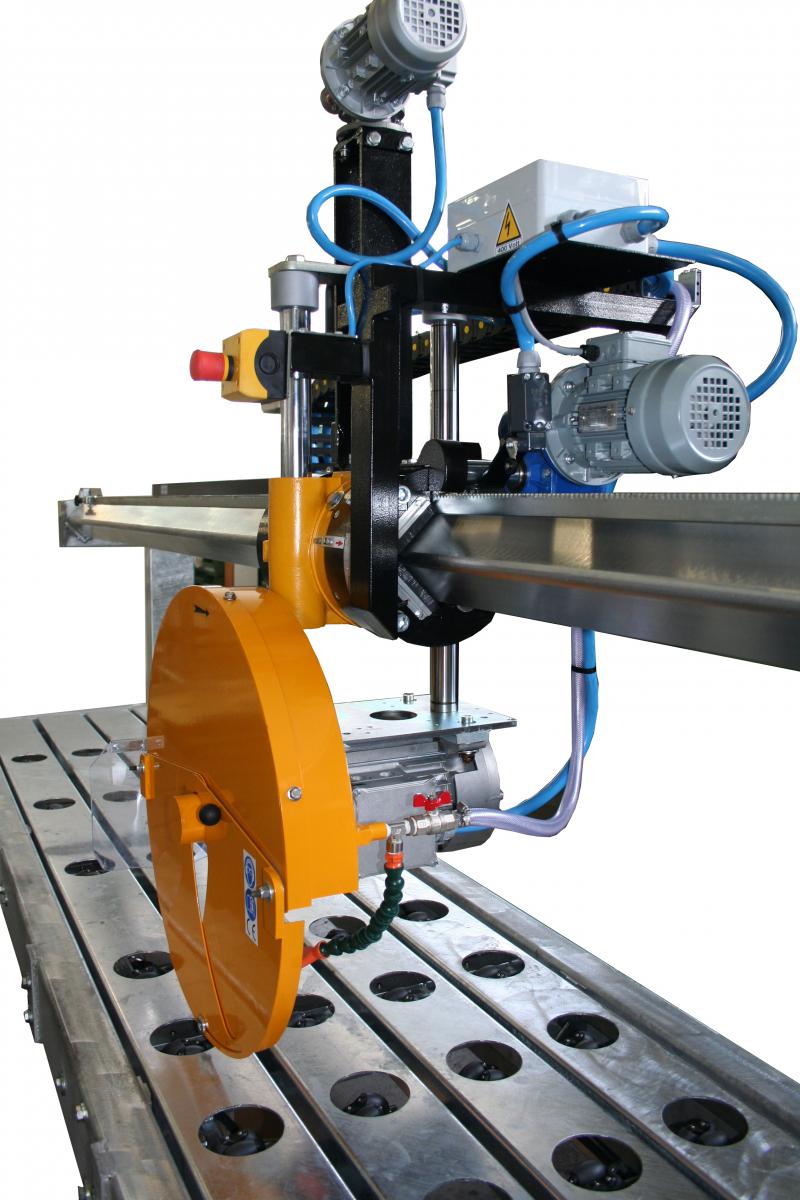

Head tilt

Head tilt

Manual head tilt from 90° to 45° for inclined cuts.

Worktable

Worktable

Worktable made of galvanized steel rails.

Cutting depth adjustment

Cutting depth adjustment

Motorized working depth adjustment along Z axis by geared motor.

Head motion

Head motion

Motorized head motion with variable speed on X axis, in both directions and motorized working depth adjustment along Z axis by geared motor.

Extensions and side stop included

Extensions and side stop included

The worktable is equipped with no. 6 worktable extensions and side stop for easily move also big slabs.

Advantages

TFM is an extremely sturdy bridge saw, suitable to cut also thick stone slabs:

  • Customizable according to customer requirements;
  • Equipped with a special design beam providing the utmost accuracy;
  • Optional PLC control unit for step-cut programming;
  • Extremely accurate cutting on stone, ceramic, quartz and sintered materials;
  • Motorized head motion with variable speed on X axis in both directions.
Technical details
X axis travel 3100mm (10’2”) or 3500mm (11’5”)
Z axis travel 380 mm
Worktable dimensions 3695×900 mm
Diamond blade diameter 300-400 mm (12"-16") or 400-625 mm (16"-25")
Blade bore size 50 mm
Motor power

7.5kW = 10HP / 11kW = 15 HP (3ph.)

Main motor rotation speed 1400 rpm 50Hz – 1700 rpm 60Hz
Standard voltage/ frequency

400V-50/60Hz  /

230V-60Hz  3ph.



Accessories
Rubber covering on the worktop

Rubber covering on the worktop

Non-slip rubber covering for the worktable surface, ideal for ceramic slabs.

Pneumatic piece holder for ceramic pieces

Pneumatic piece holder for ceramic pieces

The device is composed of 6 pneumatic pistons, connected to the compressed air.
Lenght: 2500mm (min. width 7cm - piston travel 15mm)
It can be fixed on the standard side stop of the machine or on the device for parallel cuts.

Device for parallel cuts

Device for parallel cuts

Machine can be equipped with a special device that, controlling the movement of the side stop, facilitates the execution of parallel cuts. The side stop runs parallel to the cutting line by means of a special hand wheel.

Variable speed

Variable speed

Blade variable speed to adjust the speed of the disc depending on the worked material.

Digital device for parallel cuts

Digital device for parallel cuts

The machine can be supplied with a side-stop device equipped with a mechanism that facilitates the execution of parallel cuts. By means of a handwheel, the side stop is made to slide parallel to the cutting line, so as to avoid repeated attempts of manual measurement. The displacement is displayed by means of a digital position indicator equipped with an LCD display, which reads the position by means of a head on a decimal magnetic strip. The position indicator can be reset at any point and it is possible to program it to keep in memory the thickness of 3 different discs. If properly selected the thicknesses will be automatically added to the measurement to be made.

Control PLC

Control PLC

PLC control unit for step-cut programming.

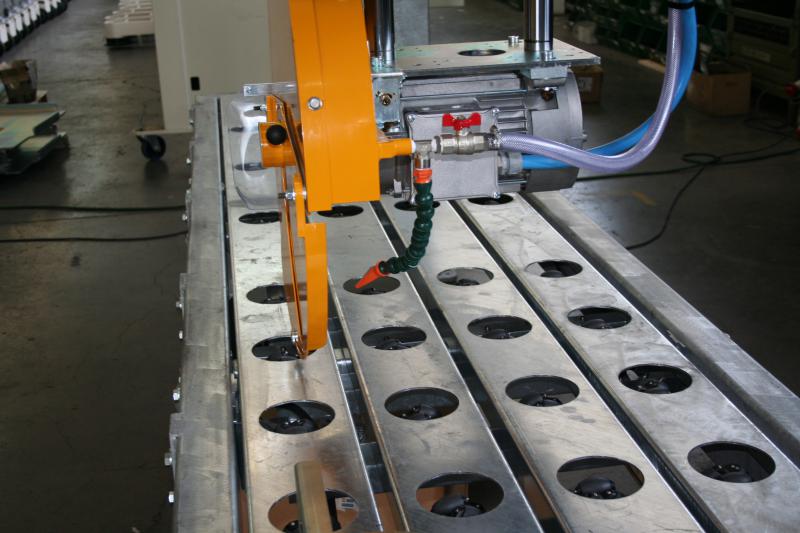

Worktable with pop-up rollers

Worktable with pop-up rollers

Pop-up rollers manual or motorized to facilitate slab loading and positioning: roller table with omni-directional rollers.

Side extension tables with rollers

Side extension tables with rollers

Side extension tables equipped with rollers to facilitate slab movement. Dimensions: 1510x865 mm

Laser

Laser

Laser alignment device mounted on the head shows the blade’s cutting line.

Water tank

Water tank

Water tank with built in recycling pump for disc cooling during processing.

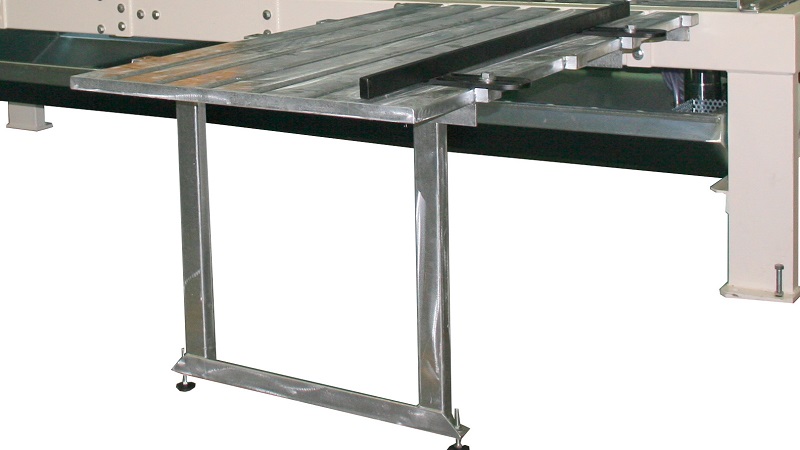

Side table

Side table

For large slabs, machine can be equipped with a side extension table. Dimensions: 1510x865 mm

They chose Mini bridge saw TFM
See all products
Request Information

Do you need information about Achilli products? Contact us for technical or commercial information on floor grinders, bench saws and bridge saws.

Request Information
Share your choice

Share on your social profiles the product you chose for your work.

ALWAYS BY YOUR SIDE

Guarantee 12 months

Qualified technical support

Training with Achilli technicians

Spare parts always available

0541 387066 info@achilli.com Technical support Request customization Data sheet Request Information

Product: Mini bridge saw TFM
