ADR XL saw for blocks

Bench saw with sliding head for thick building materials

ADR XL saw for blocks

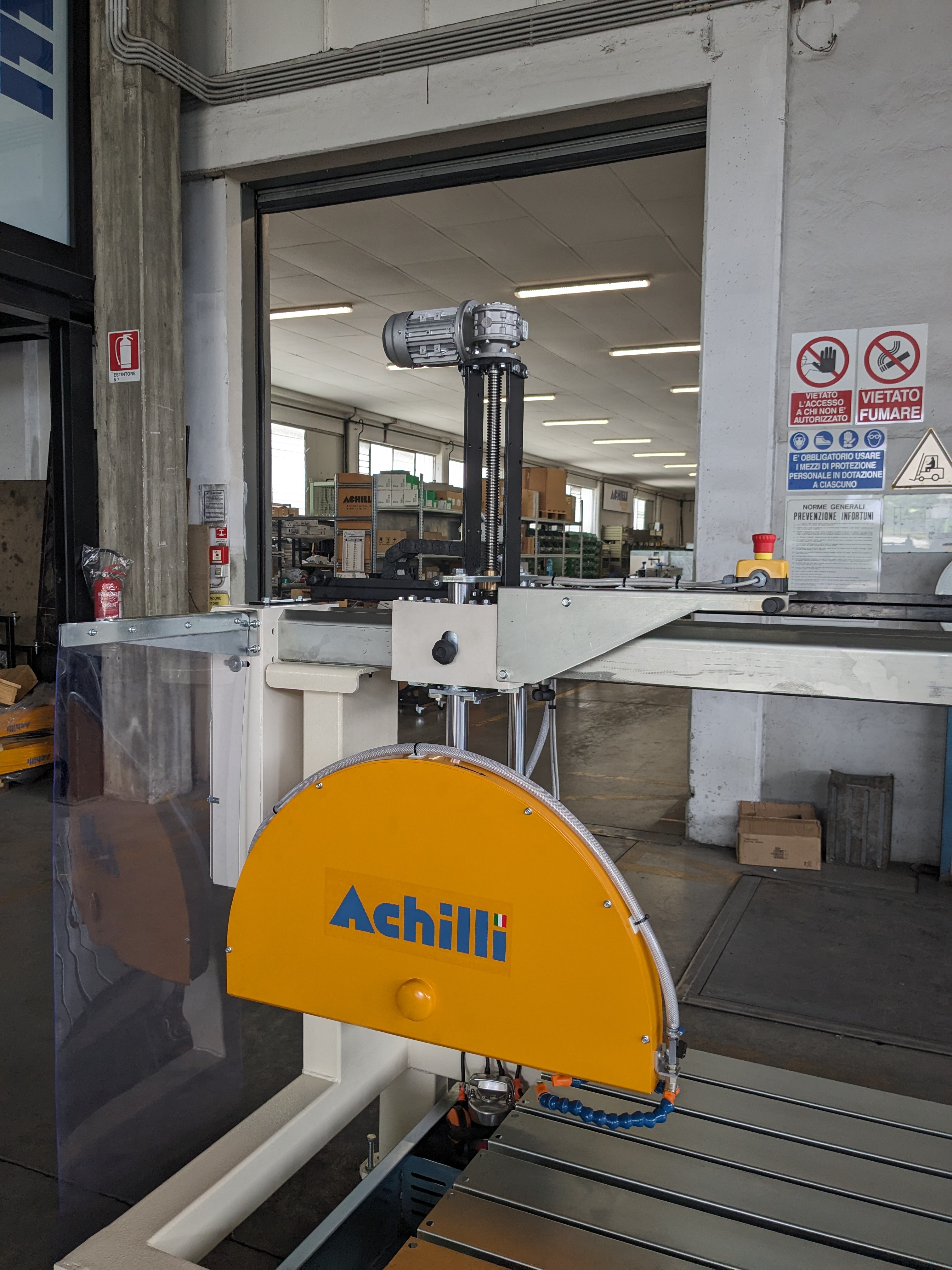

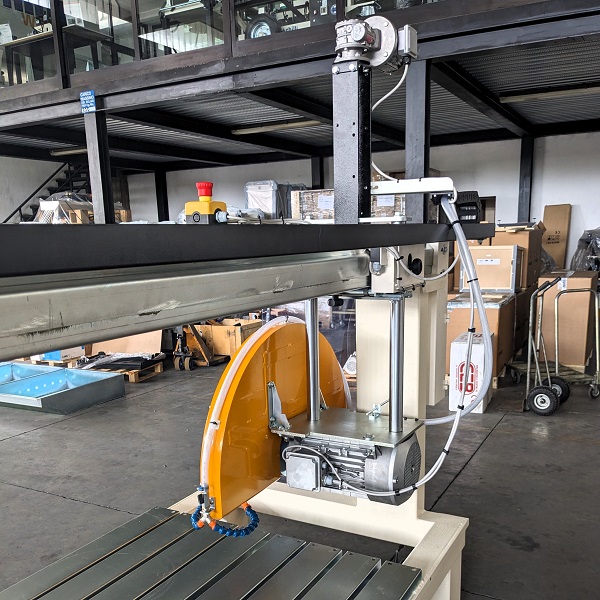

Cutting machine with sliding head for thick building materials and stones. It can mount blades up to 1200mm in diameter. The saw is designed to cut traditional bricks, refractory bricks and soft stones.

Request Information
Tailored Achilli machines
Contact us for details

Request customization
Head feed

Head feed

Manual head feed by hand wheel, useful cut 1500mm.

Diamond blade diameter

Diamond blade diameter

The saw can mount a diamond blade ø 1000-1200mm in diameter.

Cutting depth adjustment

Cutting depth adjustment

Cutting depth adjustment by hand crank.

Worktable

Worktable

Worktable fabricated in strong steel rails, finished with epoxy powder.

Advantages

ADR XL is a sturdy and compact bench saw for blocks and thick building materials:

  • Worktable made of galvanized steel rails, finished with epoxy powder;
  • Available with manual or motorized cutting depth adjustment;
  • Available with manual or motorized head feed.
Technical details
Useful cut 1500 mm
Diamond blade diameter (not included) 825-850 / 1000-1200 mm
Blade bore size 50 mm
Motor power 7.5kW = 10HP  3phase
Motor rotation speed 900 rpm  50Hz
Standard voltage/ frequency 400V-50 Hz



Accessories
Motorized head feed

Motorized head feed

Available with motorized head feed with variable speed both forward and backward.

Motorized cutting depth adjustment

Motorized cutting depth adjustment

Motorized cutting depth adjustment by motor reducer.

15HP motor

15HP motor

Available with increased motor 11kW-15HP.

Control PLC

Control PLC

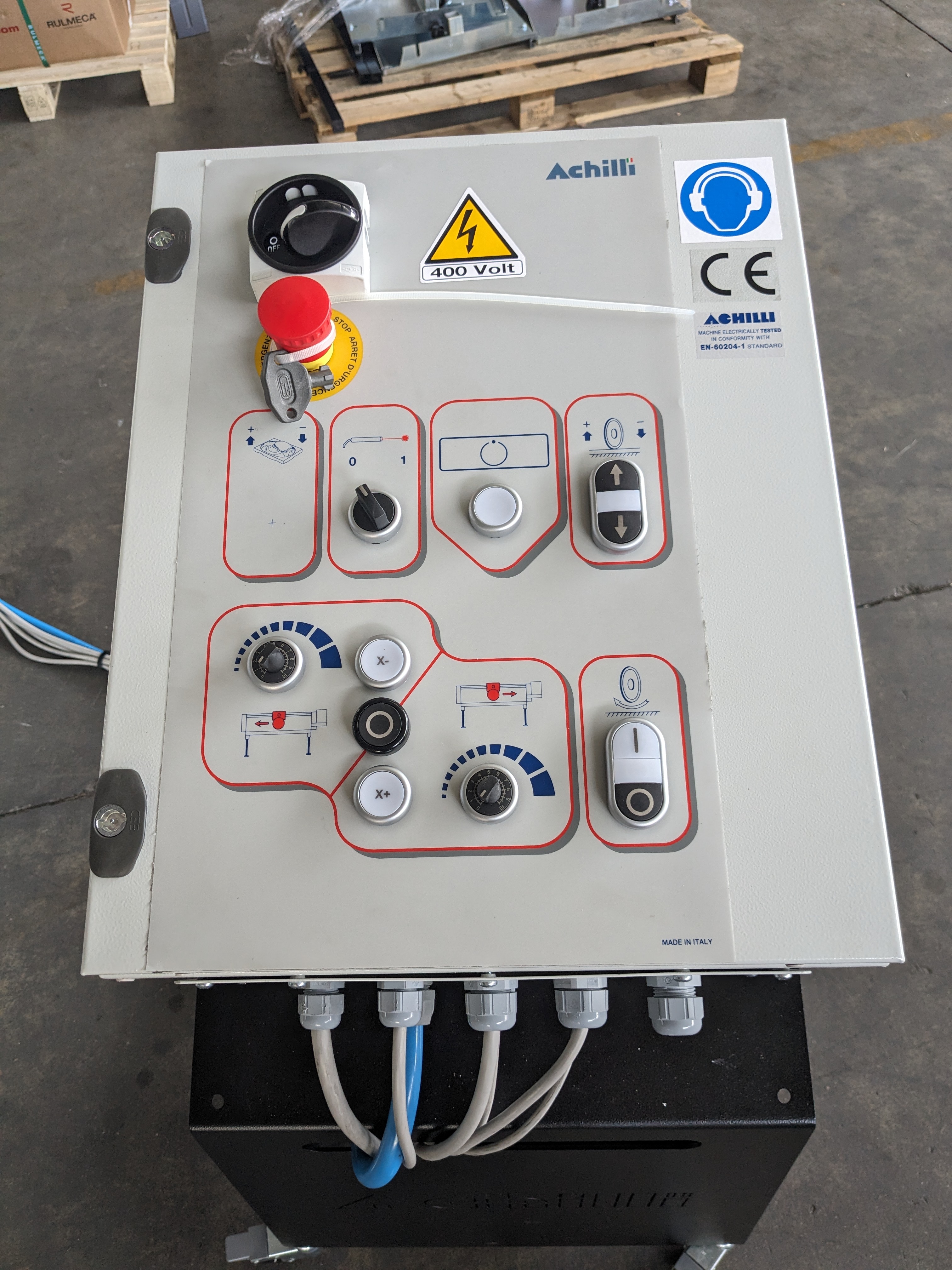

PLC control unit for step-cut programming.
