Miter saw for 45 degree cutting MSA

Miter saw for the professional tilted cutting at 45 degrees

Miter saw for 45 degree cutting MSA

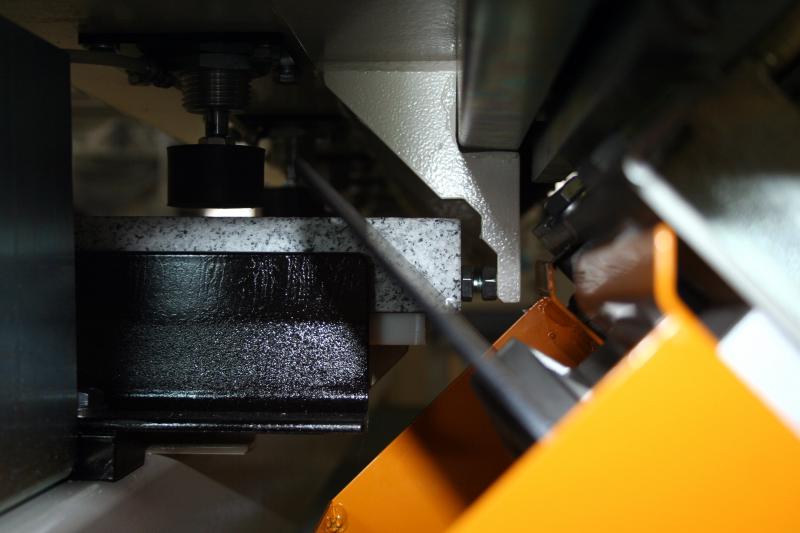

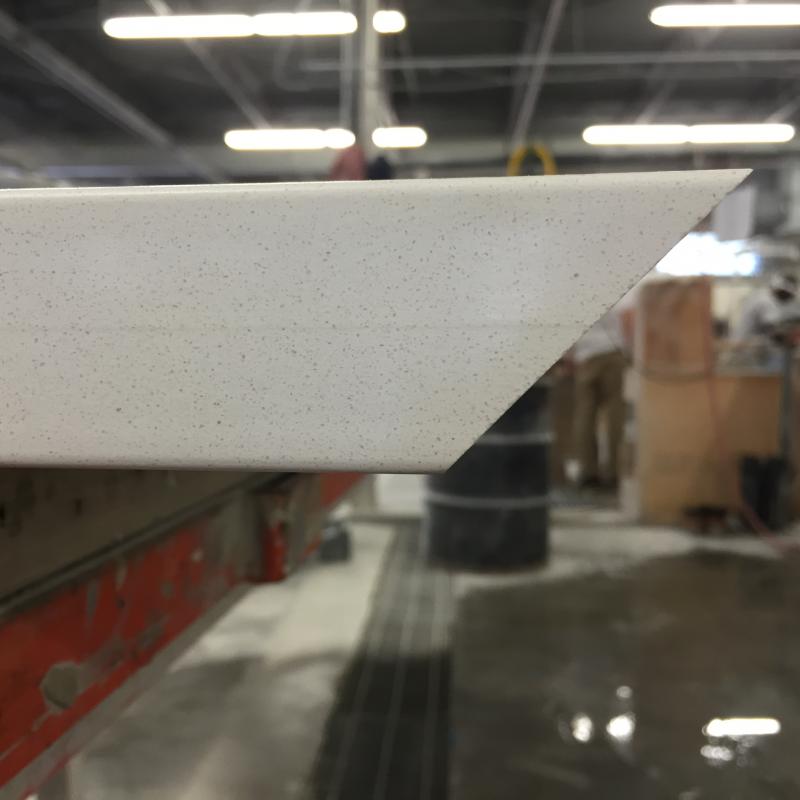

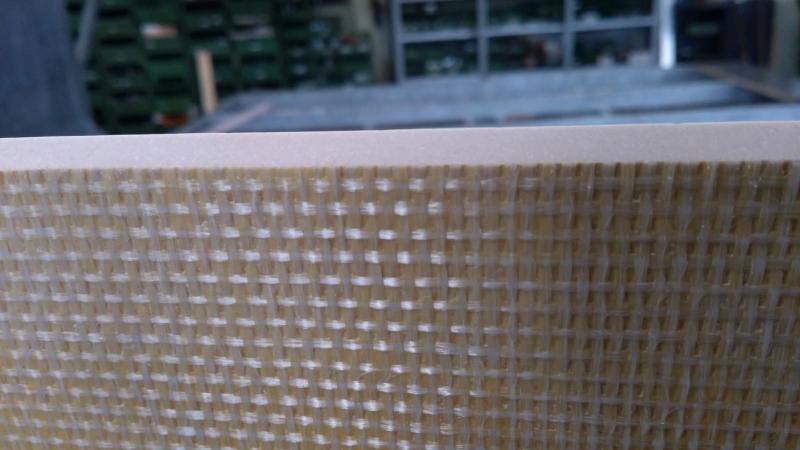

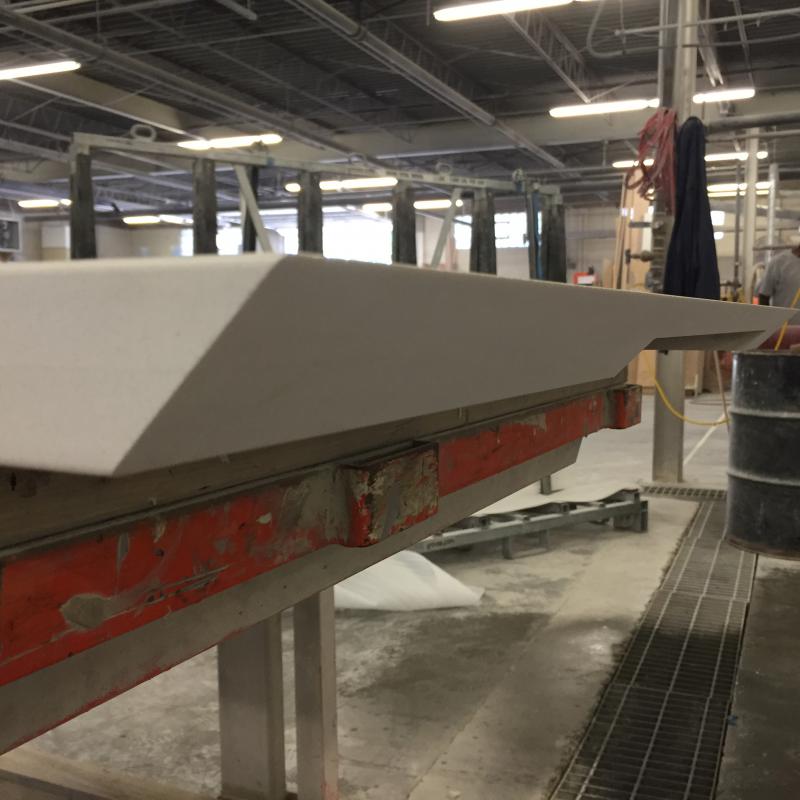

Professional stone saw for tilted cuts designed to work slabs "face down", it allows to perform perfect 45 degree cutting even on uncalibrated slabs. No width limitation of the slab to process; even the most narrow strips can be machined thanks to the special pneumatic pistons blocking the stone. The maximum cutting precision is guaranteed by the head travel on linear guides fitted with recirculating ball slides and by the position of the blade cutting from bottom upwards.

Request Information
Tailored Achilli machines
Contact us for details

Request customization
Structure

Structure

Steel frame sandblasted and ceramic coated (hot-dip galvanized upon request).

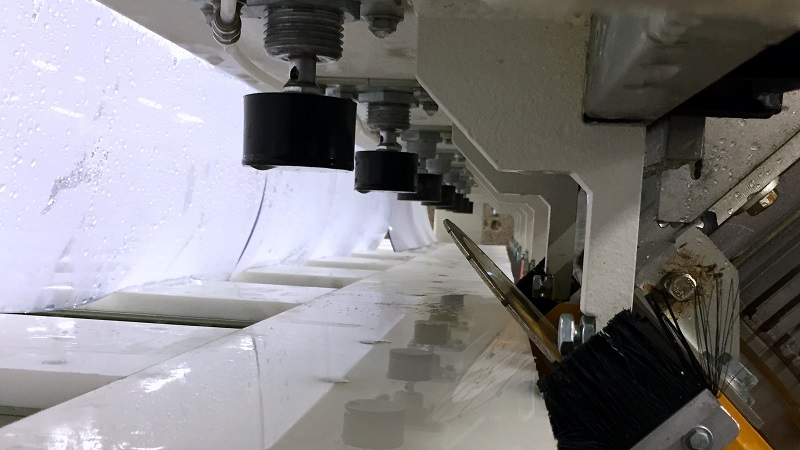

Slab blocking

Slab blocking

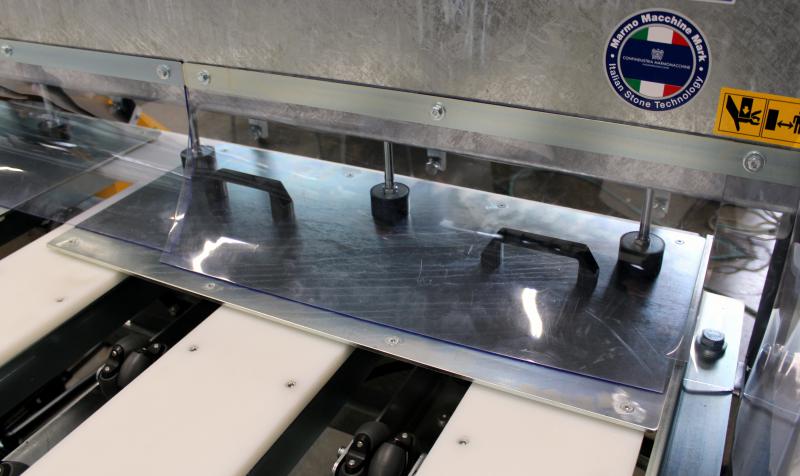

10 pneumatic pistons and 3 plates to secure also small workpieces in place during machining.

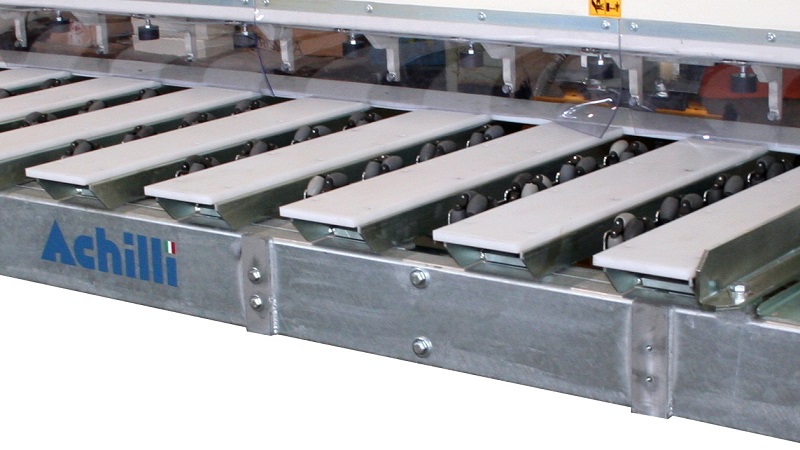

Worktable

Worktable

Work table made of scratchproof plastic material strips.

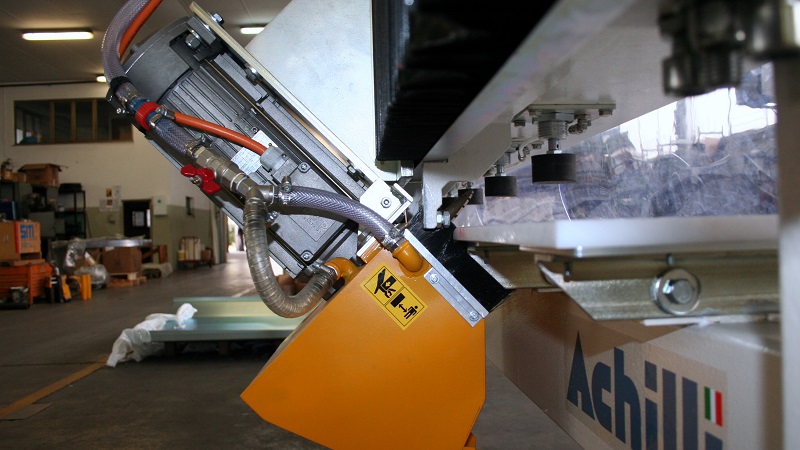

Head feed

Head feed

Motorized head travel with variable speed on linear guides fitted with recirculating ball slides automatically lubricated.

Advantages

MSA professional miter saw for tilted cuts:

  • Steel frame with hot-dip galvanizing treatment for maximum resistance to wear and rust;
  • Worktable made of anti-scratch plastic material slats;
  • Maximum cutting precision is guaranteed by the head travelling on linear guides fitted with recirculating ball slides automatically lubricated;
  • 11 pneumatic pistons and 3 slab stops to secure even the smallest workpieces in place during machining;
  • Pneumatic pop-up slab stops to cut thin ceramic and sintered material slabs;
  • Digital displays to visualize disc rpm, feed speed and main motor ammeter;
  • Removable plastic splash guards, along the entire worktable;
  • Precision handwheel to adjust the blade position when the cut does not start on the sharp corner.
Technical details
X axis travel 3700 mm (145’’)
Worktable dimensions 3700 x 1000 mm
Diamond blade diameter 350-400-450 mm (14’’- 18’’)
Blade bore size 50 mm
Min/Max stone thickness 0-80 mm (with pneumatic slab stops)
Main motor power

5,5kW = 7,5HP trifase

Main motor rotation speed

1400 rpm (50Hz) - 1700 rpm (60Hz)

Main motor rotation speed (opt.)  800 – 3400 rpm
Standard voltage/ frequency

3ph. 400V-50/60Hz  230V-60Hz



Accessories
Variable speed

Variable speed

Blade variable speed to adjust the speed of the disc depending on the worked material.

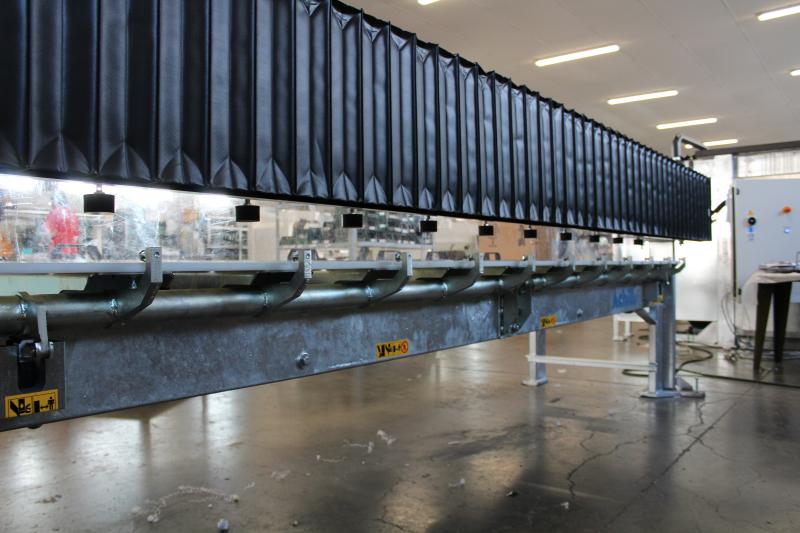

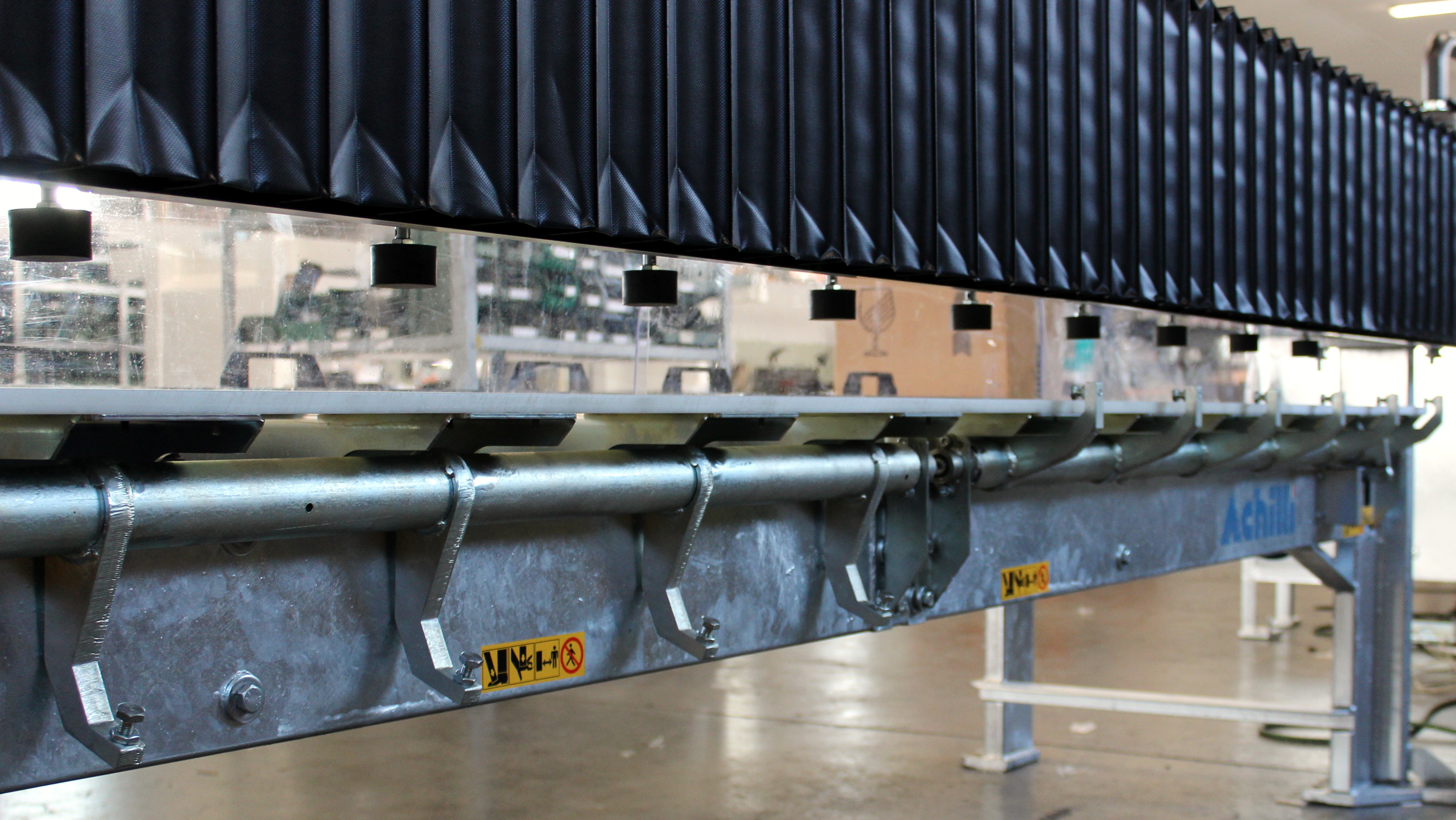

Pneumatic pop-up slab stops

Pneumatic pop-up slab stops

Pneumatic slab stops to easily work thin ceramic and stone slabs. No limit in workable thickness from 0 to 80 mm.

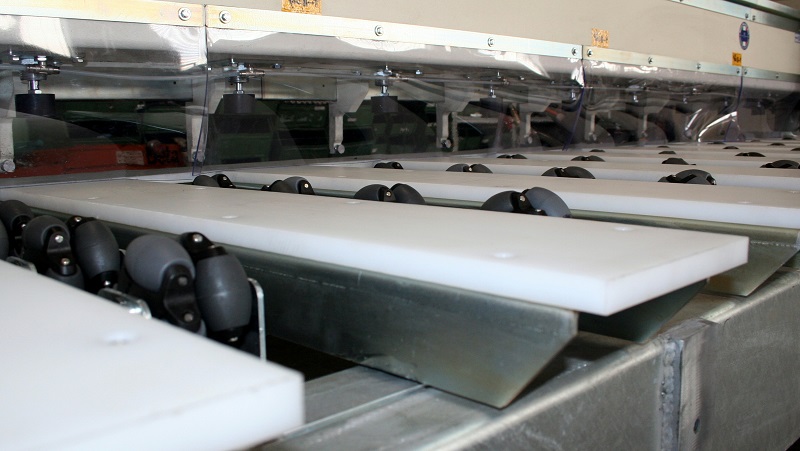

Pop-up rollers

Pop-up rollers

Hydraulic pop-up rollers to facilitate slab loading and positioning:

- Roller table with omni-directional rollers;

- Pop up rollers raise and lower by hydraulic pump.

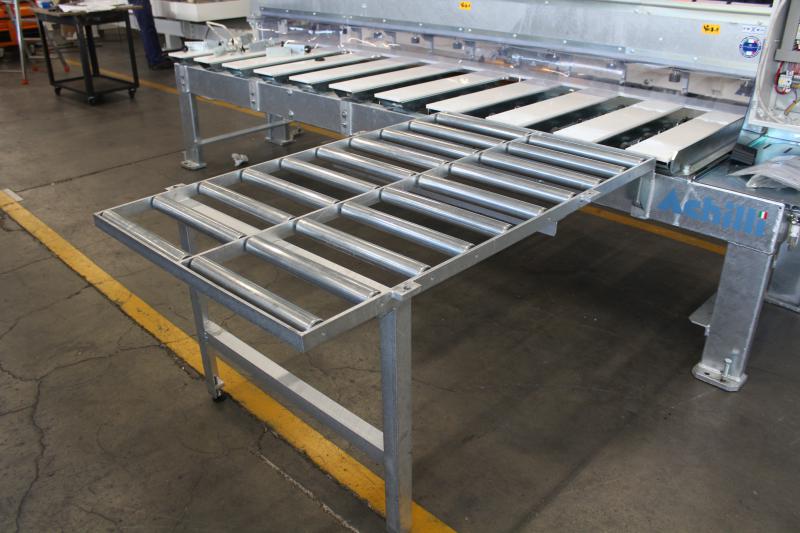

Side extension tables with rollers

Side extension tables with rollers

Side extension tables equipped with rollers to facilitate slab movement. Dimensions: 1510x865 mm

Water tank

Water tank

Water tank with built in recycling pump for disc cooling during processing.
