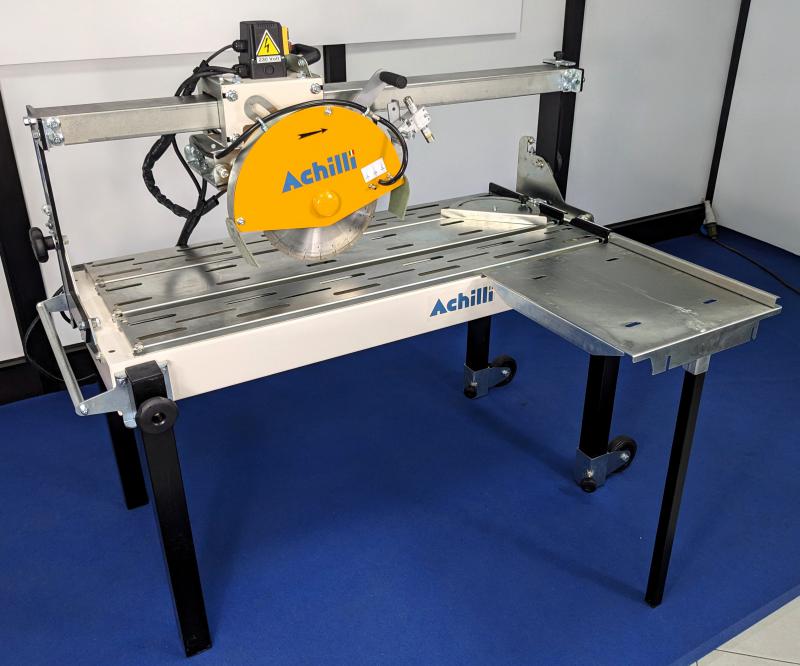

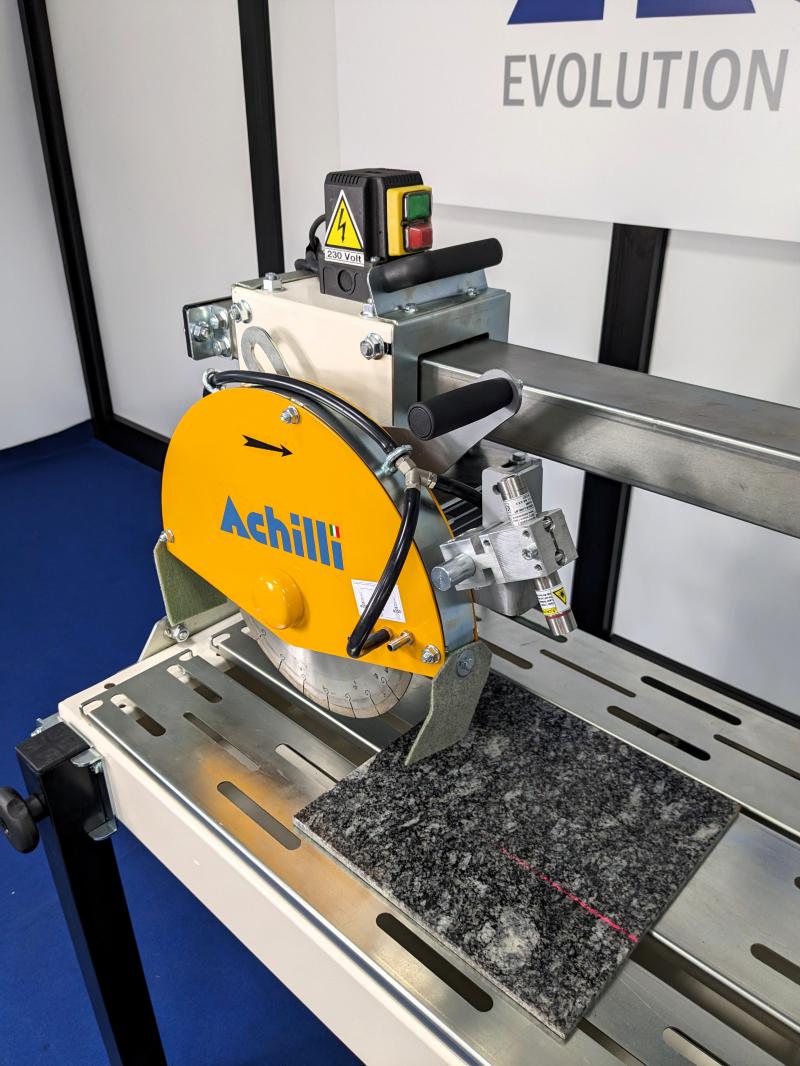

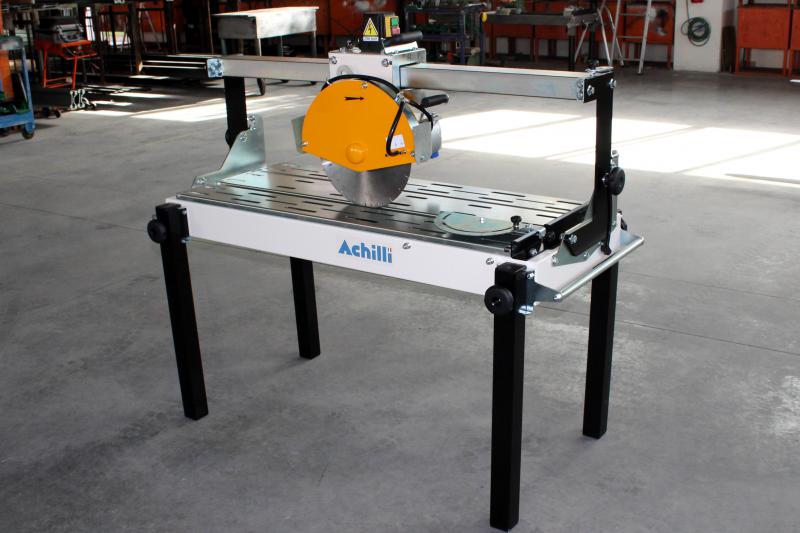

Portable bench saw AMS

Portable bench saw for tiles and building materials.

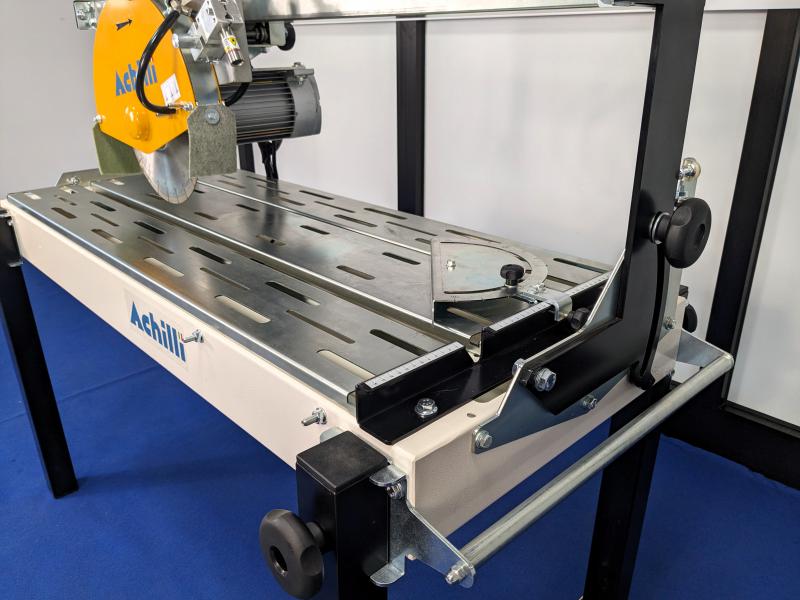

Portable bench saw AMS

Portable bench saw with sliding head for tiles and building materials. Ideal for use in construction sites. This saw is designed for cutting bricks, natural stone, marble, granite and tiles.

Request Information
Tailored Achilli machines
Contact us for details

Request customization

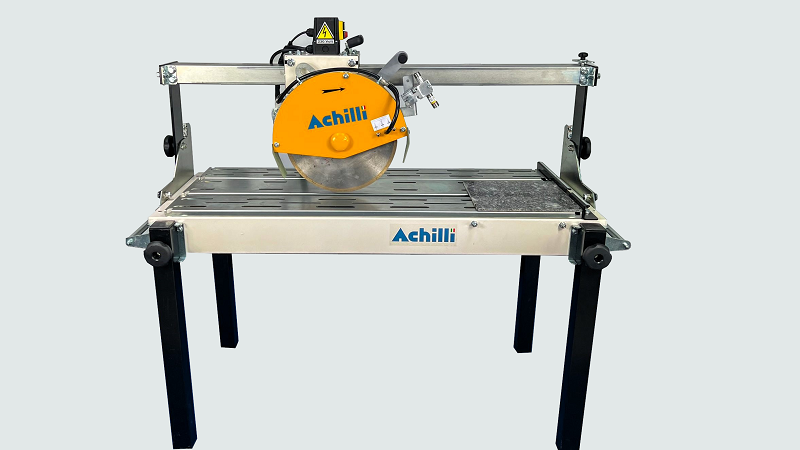

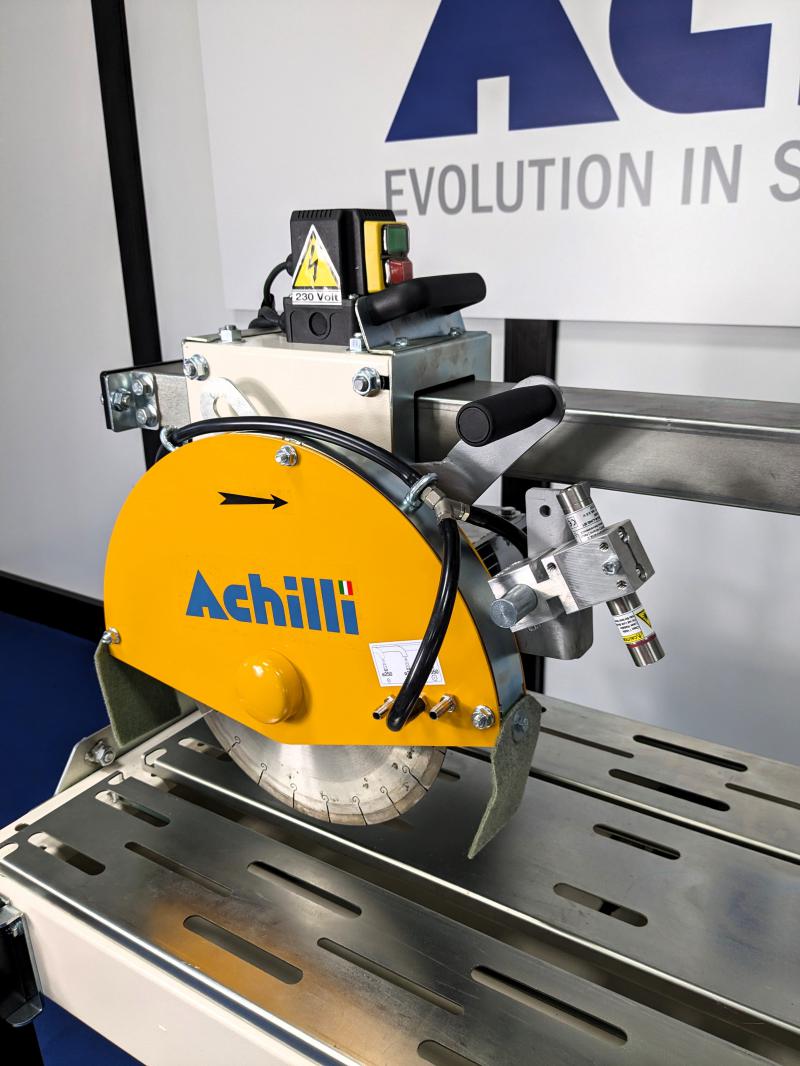

Head motion

Head motion

Manual head feed, available with useful cut: 600, 800, 1000, 1300 mm.

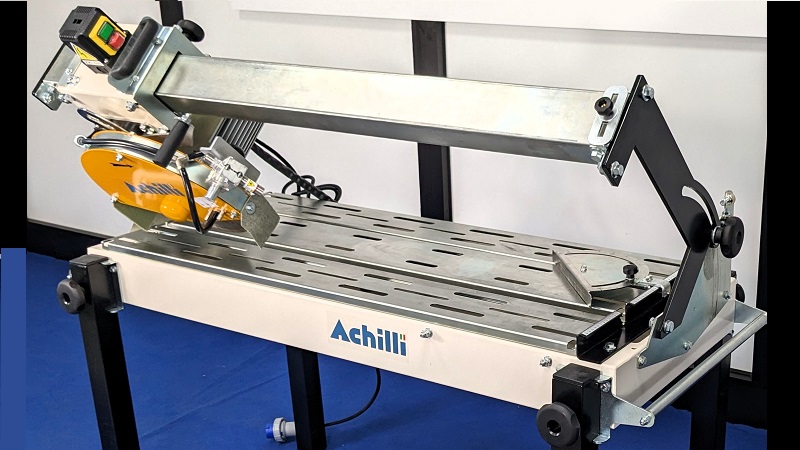

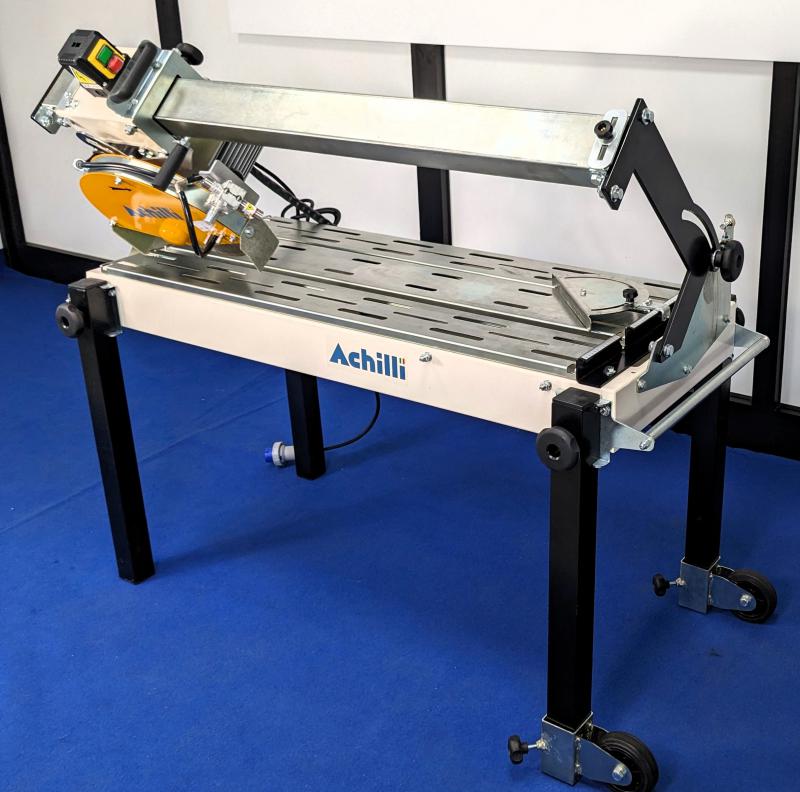

Bridge tilt

Bridge tilt

Manual bridge tilt for cutting from 90 to 45 degrees.

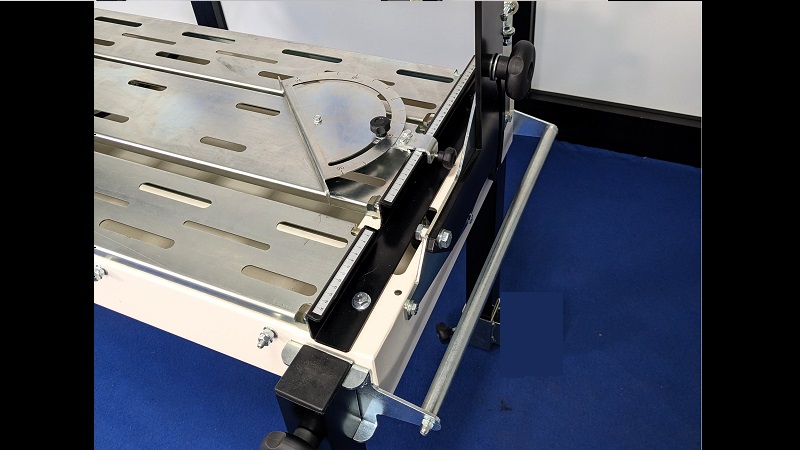

Worktable

Worktable

Worktable made of galvanized steel rails, width of 650 mm or 530 mm, with built-in handle and adjustable squaring bar.

Self-contained water recycling tray and pump for disc cooling.

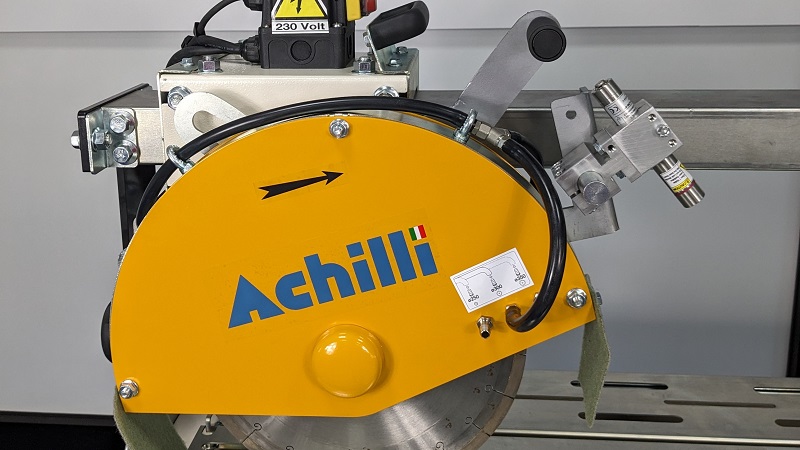

Cutting depth adjustment

Cutting depth adjustment

Manual cutting depth adjustment by “plunge” mechanism.

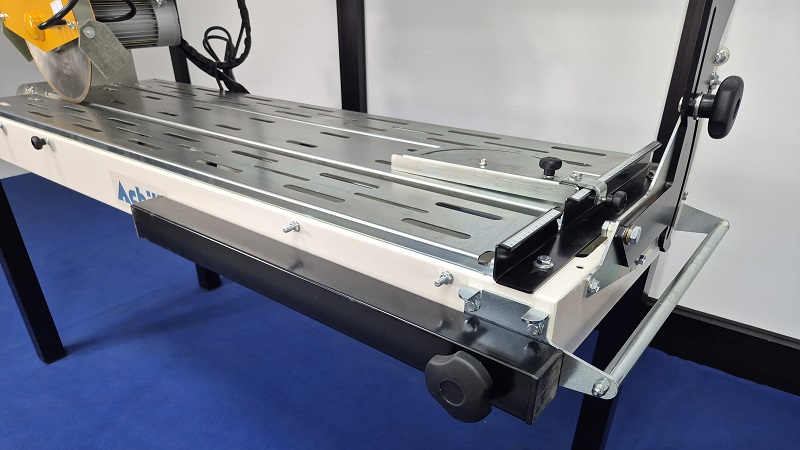

Transportation

Transportation

Folding legs for easy transport.

Advantages

AMS bench saw to cut tiles, stones and building materials with top accuracy:

  • Worktable made of galvanized steel rails, with transportation handle and adjustable squaring bar;
  • Worktable width 650 mm or 530 mm at customer's choice;
  • Self-contained water recycling tray and pump.;
  • Folding legs for easy transport.
Technical details
  AMS AMS-HT
Useful cut

600-800-1000-1300 mm

(2’- 2’7” – 3’3” – 4’3”)

600-800-1000-1300 mm

(2’- 2’7” – 3’3” – 4’3”)

Diamond blade diameter 250-300-350 mm (10”–12”–14”) 400-450-500 mm (16”–18”–20”)
Blade bore size 25,4 mm (1") 25,4 mm (1")
Motor power 2.2kW = 3HP  (1F) 4kW = 5.5HP (3F)
Motor rotation speed 2800rpm 50Hz – 3400rpm 60Hz 1400 rpm  50Hz – 1700 rpm 60Hz
Standard voltage/ frequency 230V-50Hz 400V-50Hz



Accessories

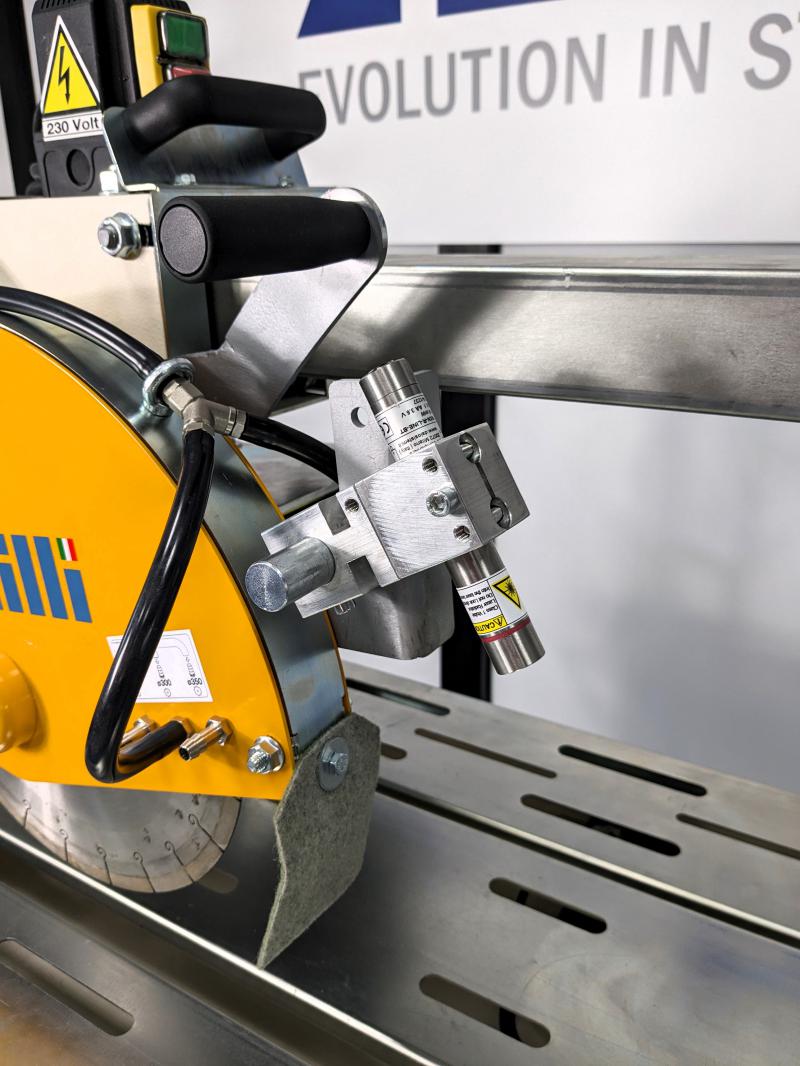

Laser

Laser

Laser alignment device mounted on the head shows the blade’s cutting line, battery feed 1,5V.

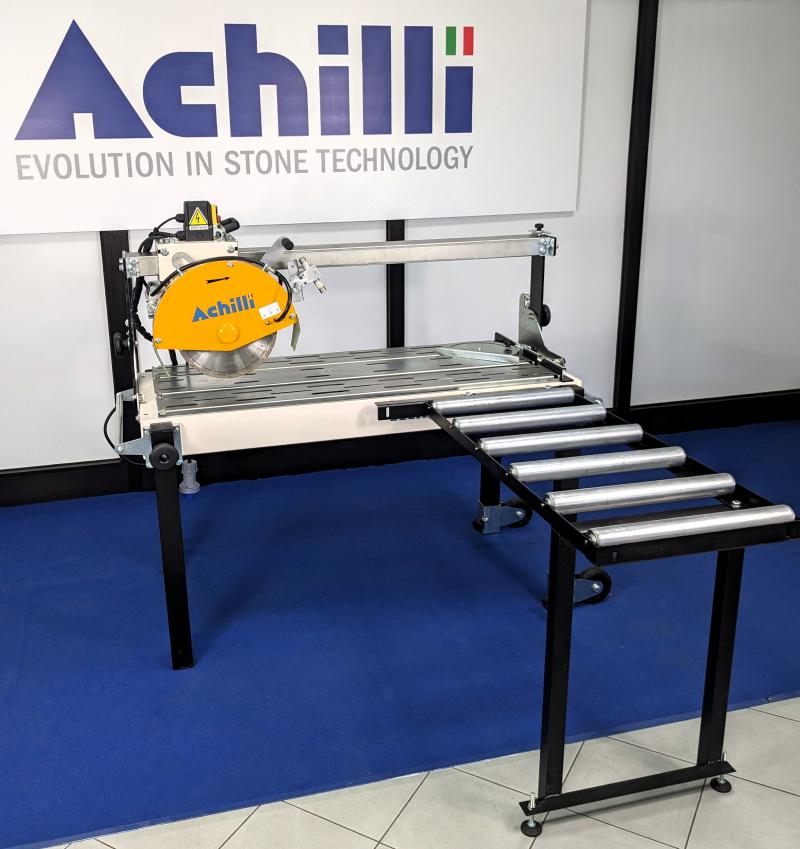

Side tables with rollers

Side tables with rollers

Side extension table equipped with rollers to facilitate slab movement. Dimensions: 1000 x 458 mm

Galvanized water tank

Galvanized water tank

Galvanized and painted water tank, for the maximum rust resistance.

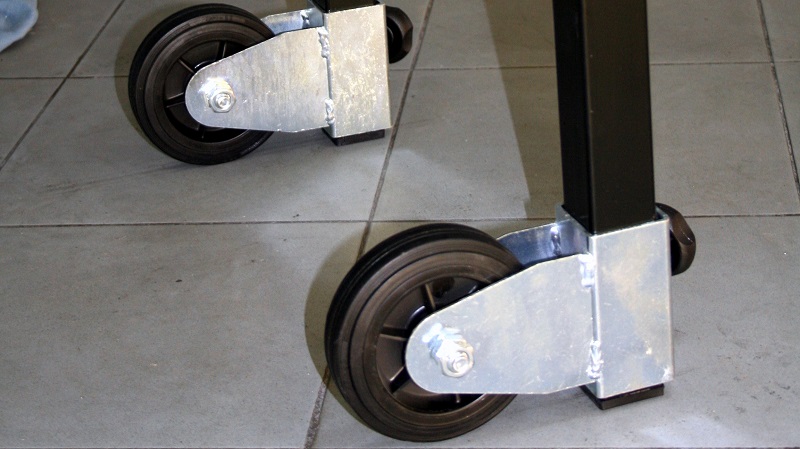

Transportation wheels

Transportation wheels

Available with wheels to facilitate transportation.

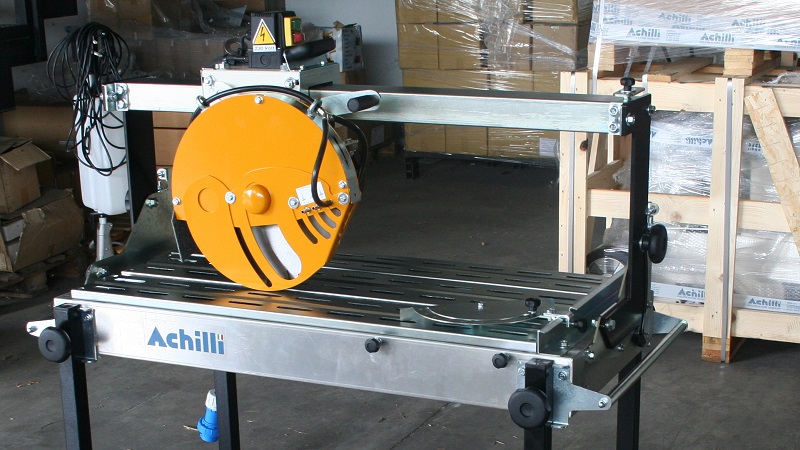

Aluminum water tank

Aluminum water tank

Available with aluminum water tank, for a lower weight and longer durability.

Versione HT

Versione HT

Highest and robust increased version with blade guard for disc Ø 400-450mm and three phase motor, 3.6kW (5HP).

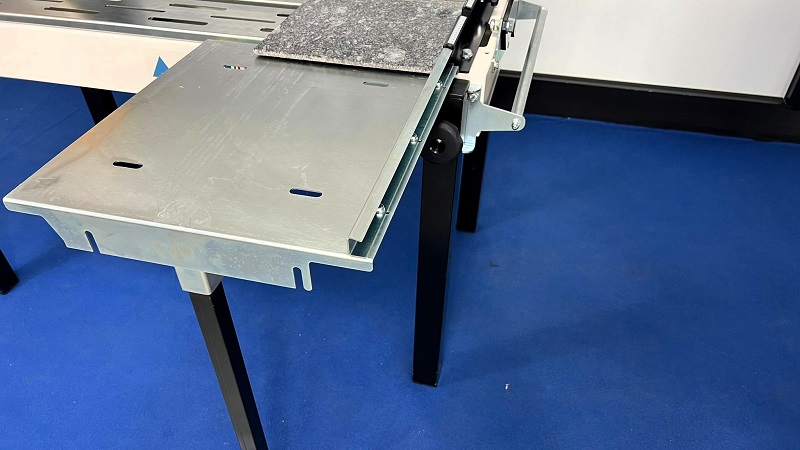

Side table

Side table

Optional side table for easy slab moving during processing. Dimensions: 500x430mm
