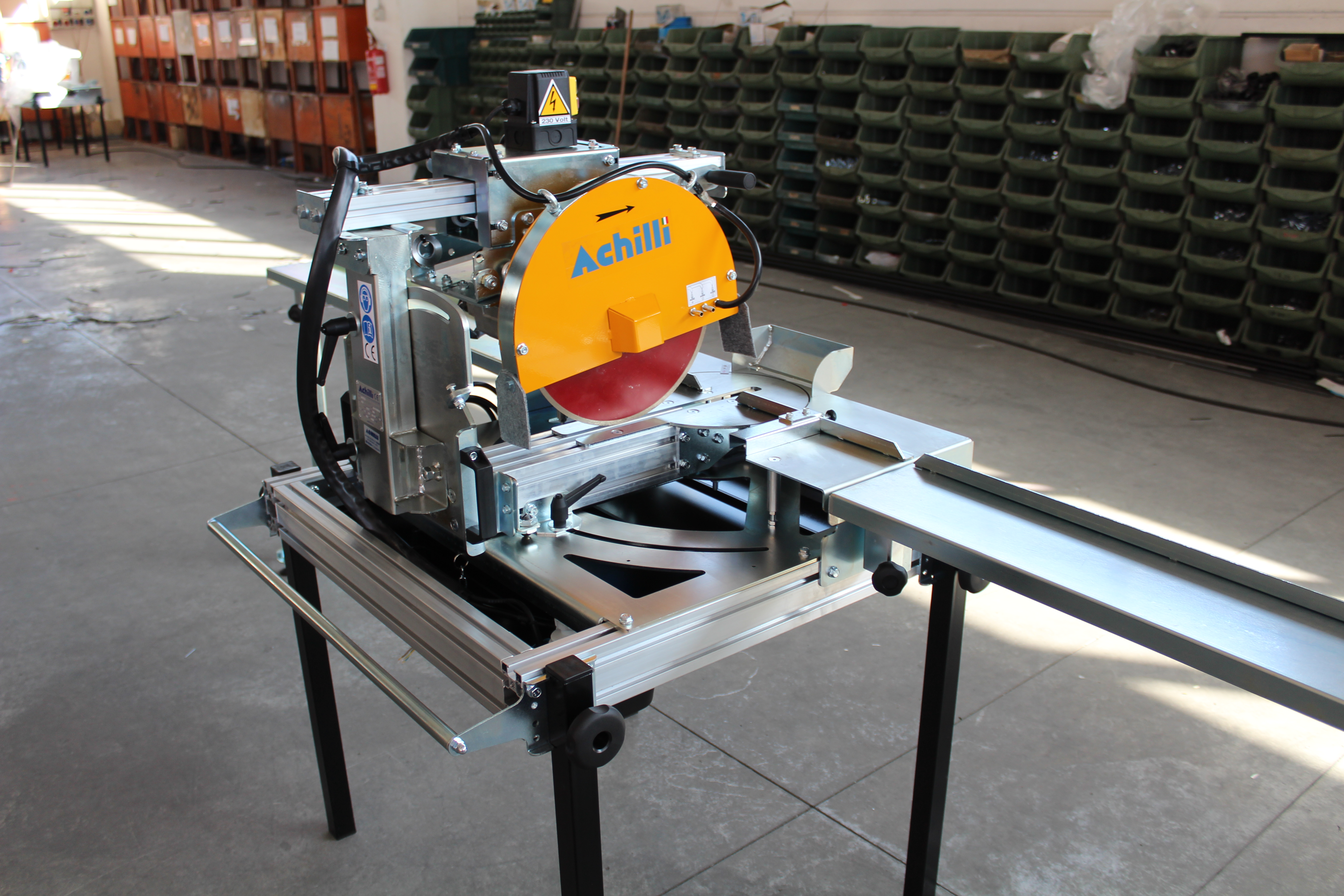

Wet cut sliding compound miter saw CMS

Portable bench saw for straight and tilted cuts in all directions

Wet cut sliding compound miter saw for straight, bevel, plunge and miter cuts in all directions. Study structure made of galvanized steel to cut all types of stone.

Tailored Achilli machines
Contact us for details
Request customization
Structure

Structure

Sturdy and compact structure, made of galvanized steel for many years of service.

Water tank

Water tank

Removable water tank made of ABS crash and consumption proof. It’s easy to clean and studied to separate the sludge from the recycling water.

Built-in recycling pump included to cool the disk during cutting.

Head tilt

Head tilt

Manual head tilt for inclined cuts from 90 to 45 degree.

Cutting depth adjustment

Cutting depth adjustment

Manual cutting depth adjustment by plunge mechanism.

Head motion and swivelling

Head motion and swivelling

Manual head feed. Head assembly swivelling from ±45 to 0 degree angles with positive locks at ±45, ±22.5 and 0 degree.

Transportation

Transportation

Long side handle and folding legs to facilitate transportation.

Advantages

Sliding compound miter saw for angle cutting in all directions:

  • Structure made of galvanized steel for a long lasting dependability;
  • Water tank with built-in recycling pump for blade cooling during cutting;
  • Swivelling head assembly from ±45 to 0 degree with positive locks at ±45, ±22.5 and 0 degree.
Technical details
Useful cut 280 mm
Diamond blade diameter 300-350 mm
Blade bore size 25,4 mm
Motor power

2.2kW = 3HP  1ph.

Motor rotation speed 2800rpm 50Hz – 3400rpm 60Hz
Standard voltage/ frequency

230V-50/60Hz



Accessories
Side tables

Side tables

Side tables. Dimensions 1200mm
