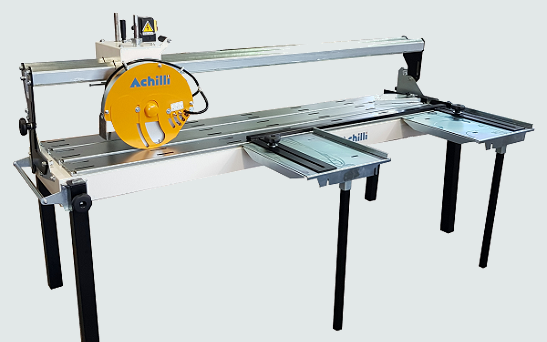

Cutting and profiling machine ANR

Portable saw for stone, marble and granite.

Portable stone saw with sturdy structure to cut marble and granite slabs with extraordinary accuracy.  The innovative optional Slot device makes it a multipurpose machine for performing horizontal cutting, profiling and polishing of straight slab edges.

Tailored Achilli machines
Contact us for details
Request customization
Worktable

Worktable

Work table made of galvanized steel rails with service square.

Useful cut

Useful cut

Manual head feed, useful cut: 600, 800, 1000, 1300, 1500, 2000 mm.

Cutting depth adjustment

Cutting depth adjustment

Manual cutting depth adjustment by hand wheel.

Bridge tilt

Bridge tilt

Bridge tilt for cutting from 90 to 45 degrees.

Extension table

Extension table

Equipped with nr. 1 or 2 side extension tables.

Advantages

ANR is a sturdy and accurate saw for stone slabs:

  • Special beam design to attain a perfect cutting precision;
  • Water tank with built-in recycling pump for blade cooling;
  • Optional device to perform horizontal cutting and profiling of slab edges.
Technical details
  ANR ANR-HT
Useful cut 600–800–1000–1300–1500–2000 mm 600–800–1000–1300–1500–2000 mm
Diamond blade diameter 250-300-350 mm 400-450mm
Blade bore size 25,4 mm 25,4 mm
Motor power

2.2kW = 3HP  1ph. / 3Kw = 4HP 3ph.

3.7kW = 5HP  3ph.
Motor rotation speed 2800rpm 50Hz – 3400rpm 60Hz 1400rpm a 50Hz – 1700rpm a 60Hz
Standard voltage/ frequency

230V-50/60Hz / 400V-50/60Hz

400V-50/60Hz



Accessories
Laser

Laser

Laser alignment device mounted on the head shows the blade’s cutting line, battery feed 1,5V.

Side tables with rollers

Side tables with rollers

Side extension table equipped with rollers to facilitate slab movement. Dimensions: 1000 x 458 mm

HT version

HT version

Highest and robust increased version with blade guard for disc Ø 400-500mm and 3phase motor, 4kW (5,5HP)

Slot profiling device

Slot profiling device

Optional device to perform horizontal cutting and slotting of slab edges.

Also, the special adaptor provided permits to use shaped wheels to create and polish various types of profiles on the straight edge.

Pull handle

Pull handle

Head extension pull handle for easy head motion, especially useful in models with long useful cutting.

Galvanized water tank

Galvanized water tank

Galvanized and painted water tank, for the maximum rust resistance.

Side tables with side stop

Side tables with side stop

The side stop to be mounted on side tables allows to support the slab during the cutting process, making the processing fastest and most precise.

Transportation wheels

Transportation wheels

Available with wheels to facilitate transportation.

Head with plunge mechanism

Head with plunge mechanism

Available with manual cutting depth adjustment by plunge mechanism with splash guards.
