TOP manual working center

Multipurpose machine for countertops

TOP manual working center

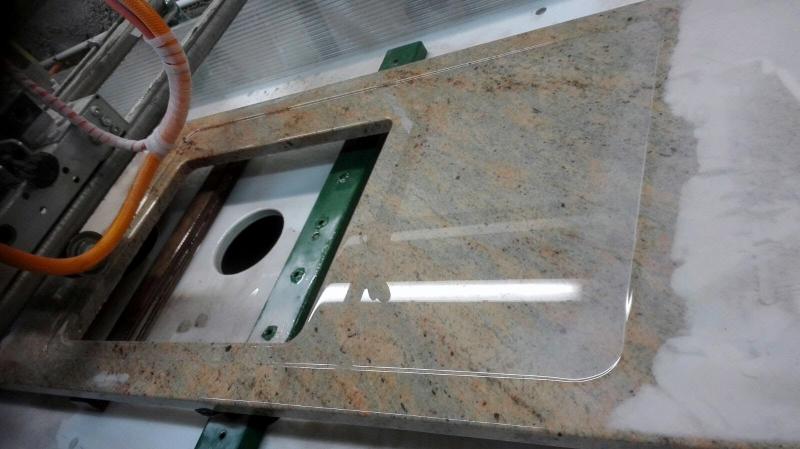

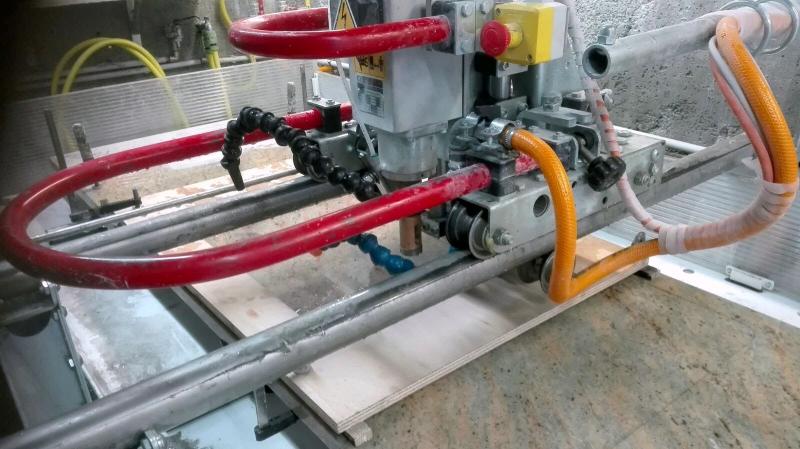

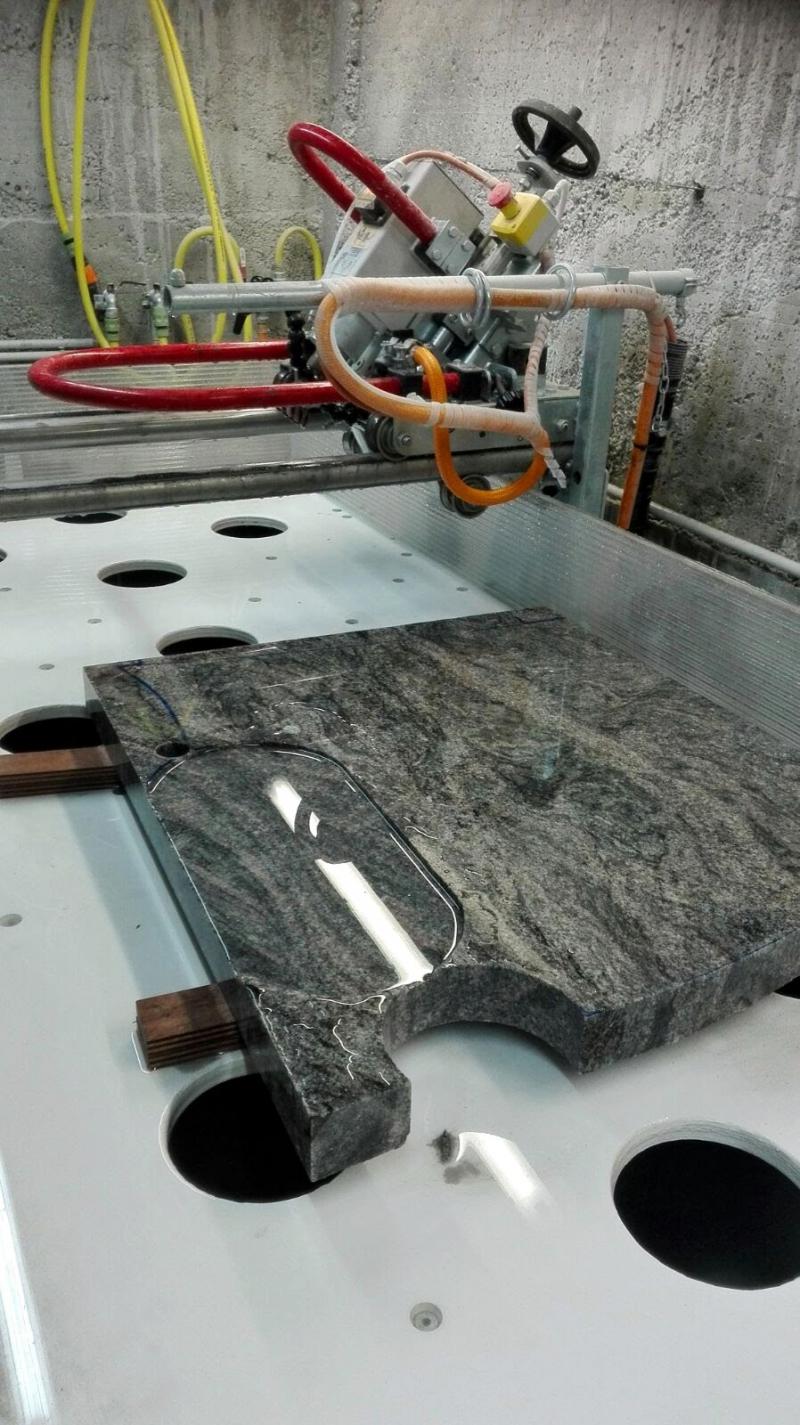

All-in-one machine for countertops: sink cut-outs, shaping and polishing internal and external countours, drilling and performing recess drains.

Request Information
Tailored Achilli machines
Contact us for details

Request customization
Structure

Structure

Galvanized steel frame and worktop.

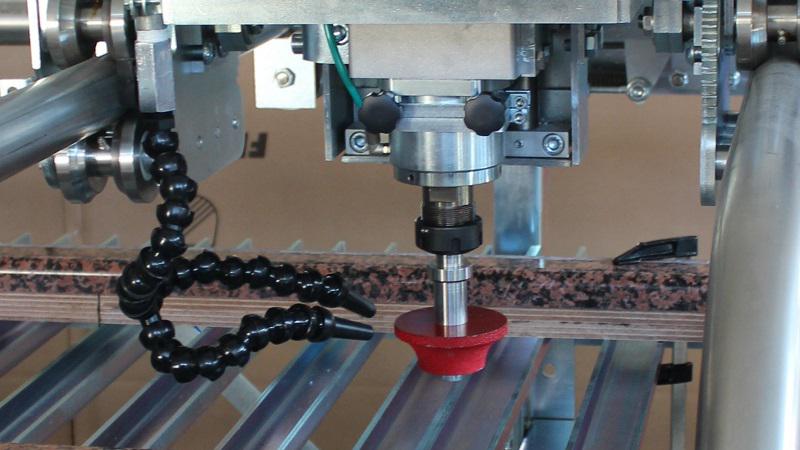

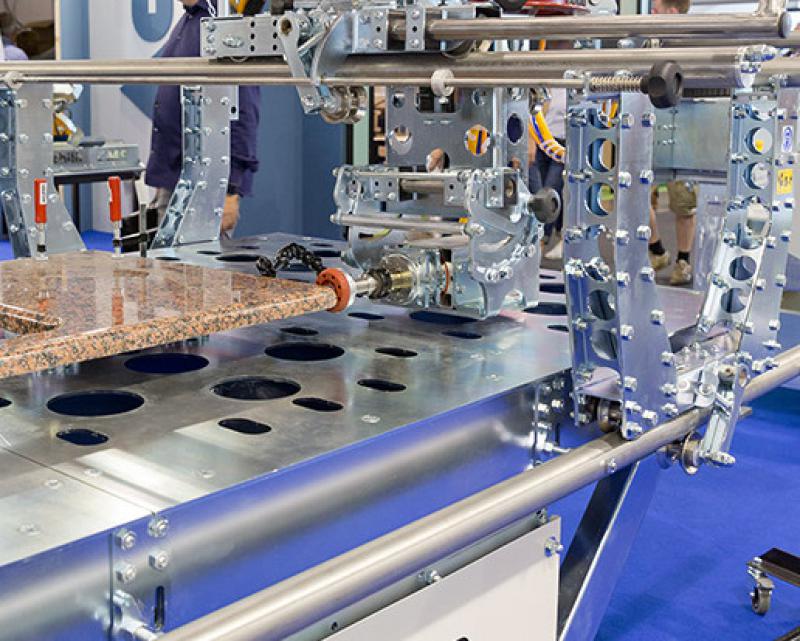

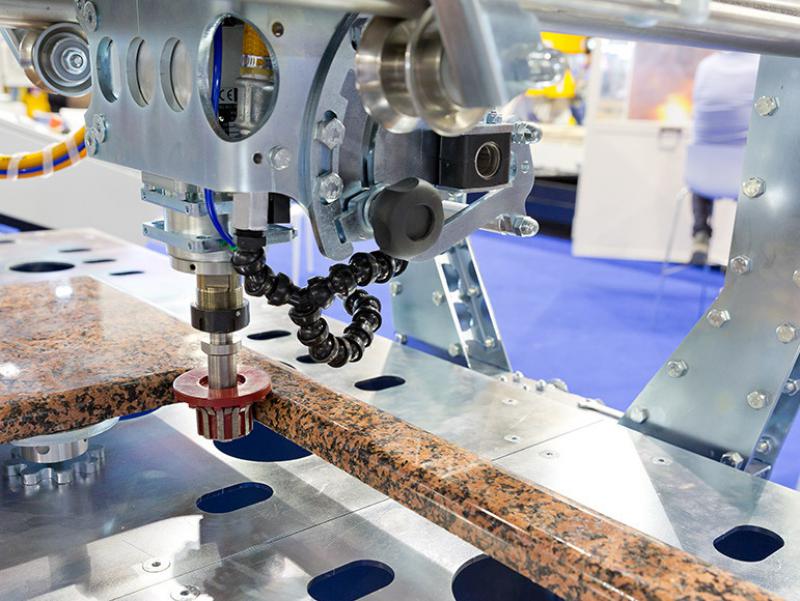

Edge profiling and polishing

Edge profiling and polishing

Max. shaped wheel height 100mm – max. wheel diameter 120mm. Possibility of using CNC as well as shaped wheels for manual routers.

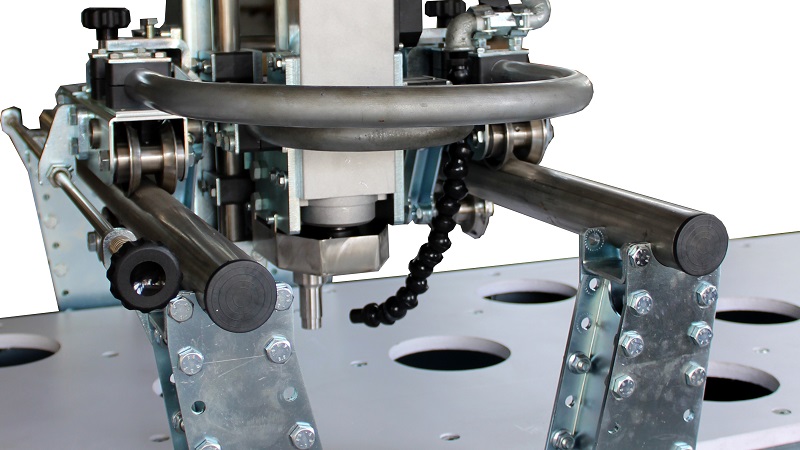

Head motion

Head motion

Head travel on stainless steel guides and wheels, guides are furnished with adjustable mechanical limit switches. Micrometrical adjustment of the spindle motion along the axes Y and Z operated by hand wheel.

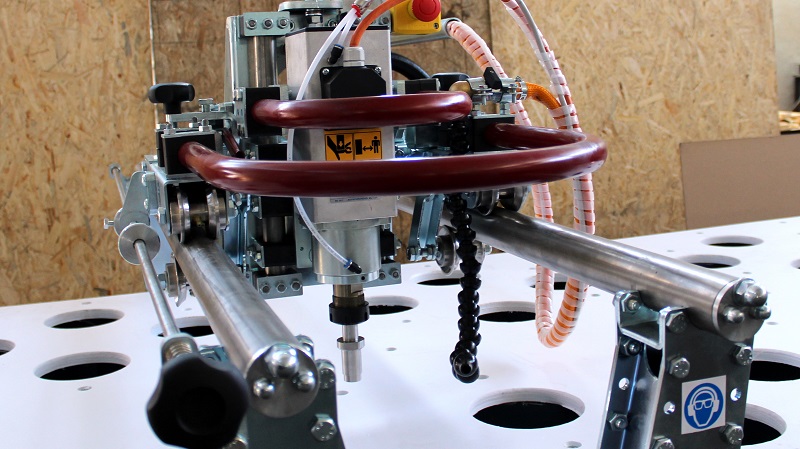

Drilling

Drilling

Maximum core drill diam. 80mm (max. tool lenght 80mm)

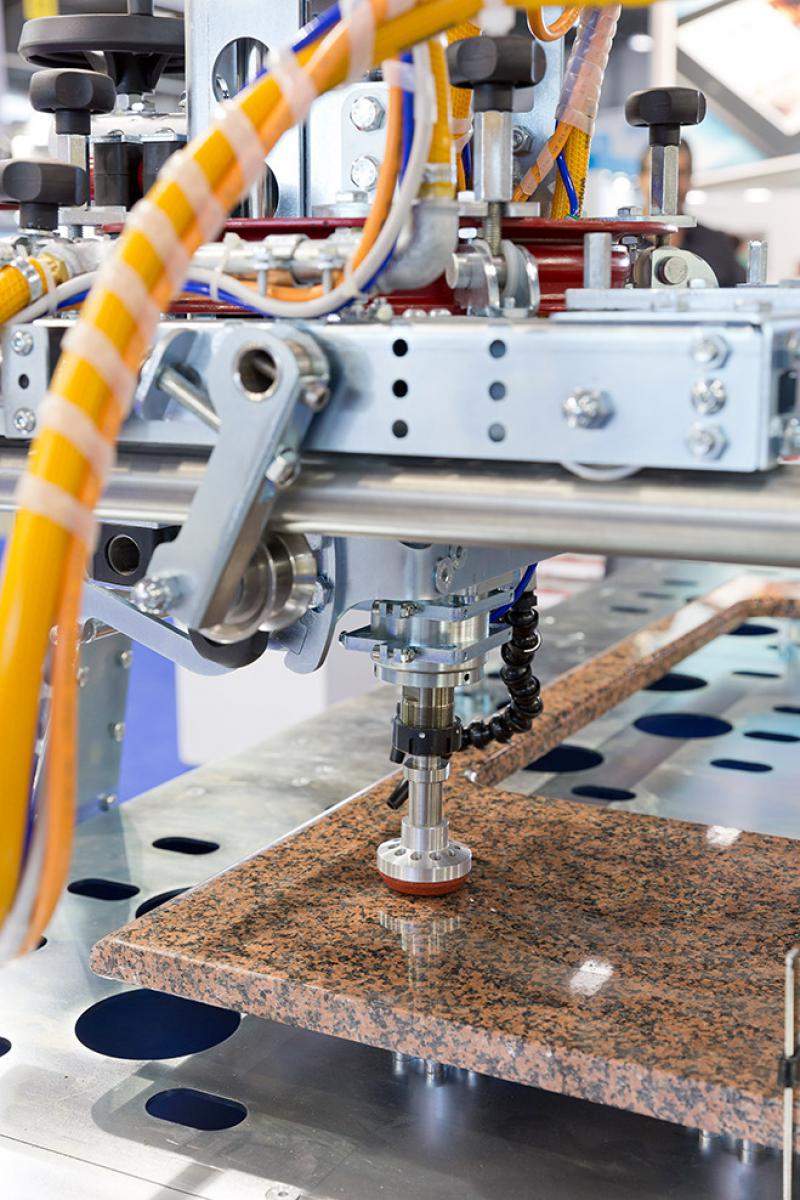

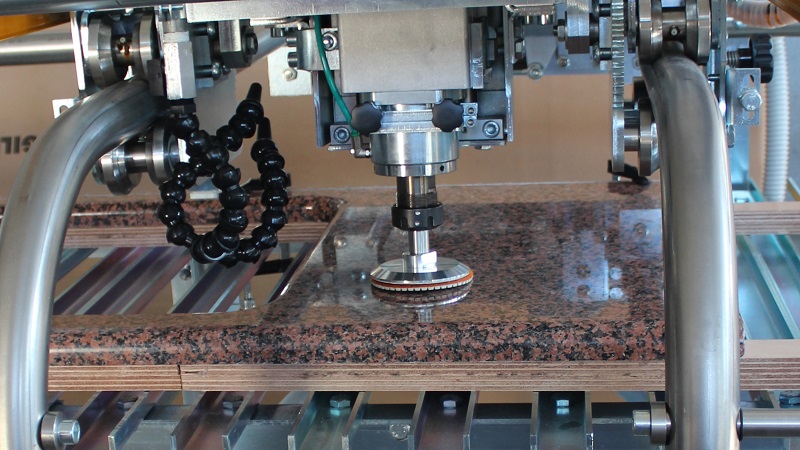

Surface polishing

Surface polishing

Surface and straight edges polishing: pads max. diameter 115mm.

Advantages

TOP multipurpose machine for kitchen countertops:

  • TOP is a multipurpose machine that allows the operator to do different jobs with only one machine with a reduced investment: sink cut-outs, shaping and polishing internal and external contours, drilling and recess drains;
  • All the job is performed without moving the piece;
  • Although it is a manual machine, it does the same job as a CNC working centre;
  • it does not require an experienced operator, anybody with a short training can work on this machine;
  • Ideal for a small or new factory minimizing investment, reducing production costs and time to manufacture the finished products;
  • It allows to create complete kitchen and bathroom countertops;
  • Possibility to use templates to create washbasins.
Technical details
X axis travel 3200 - 3950 mm
Y axis travel 780 - 1200 - 1600 mm
Z axis travel 150 mm
Main motor power 3.3kW = 4.5HP
Main motor rotation speed 1500/10000 rpm
Standard voltage-frequency

230V-50/60Hz (1ph.)



Accessories

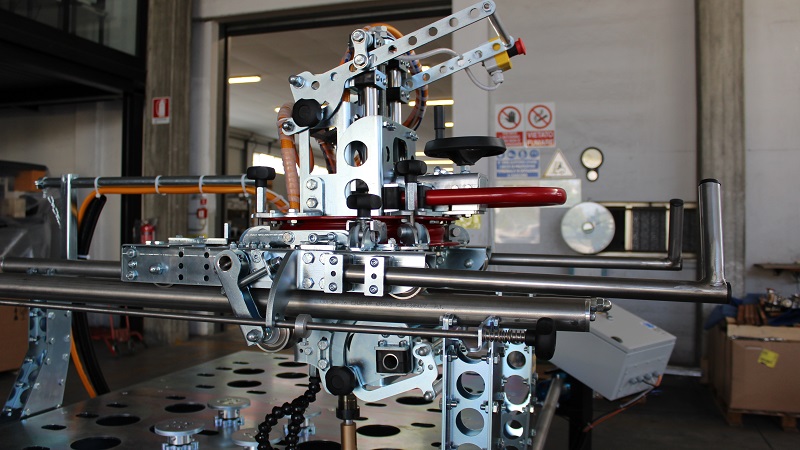

Quick drill

Quick drill

Accessory to easy drill the slabs: Z axis fast motion by lever (stroke 40mm) for plunge cuts and drill bits.

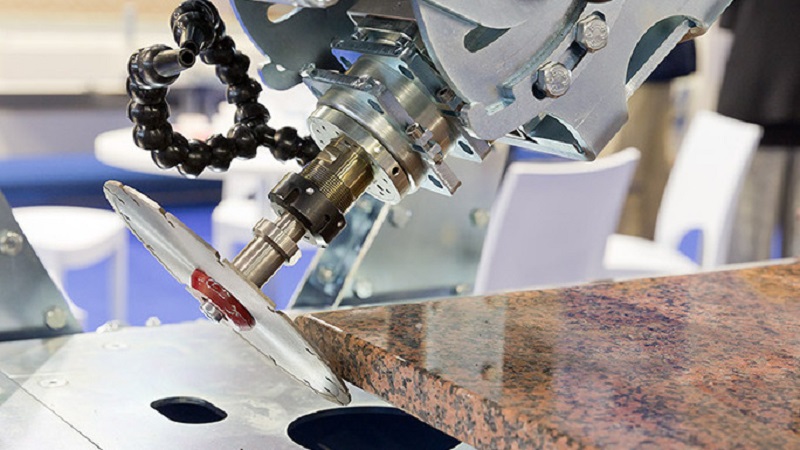

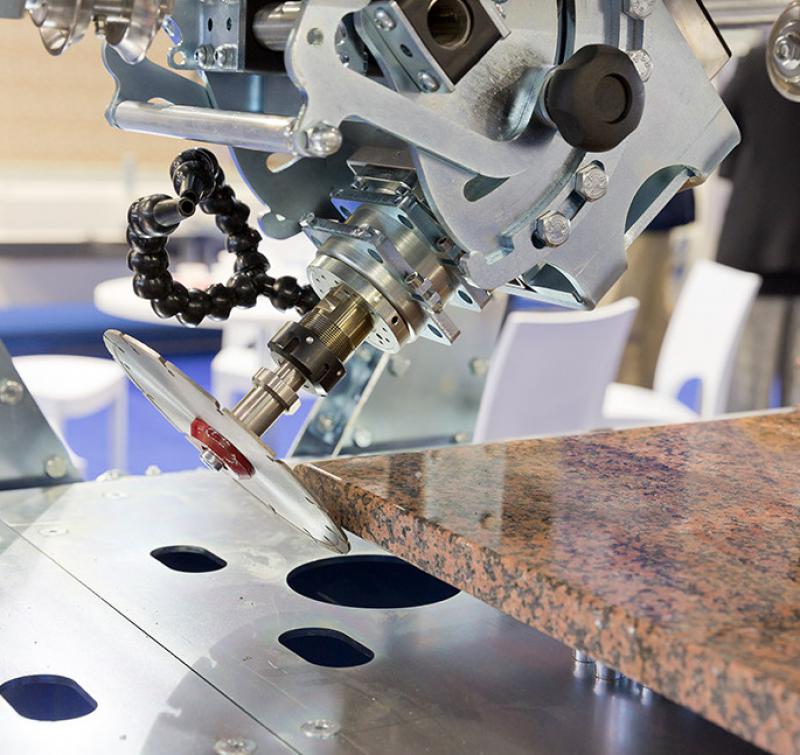

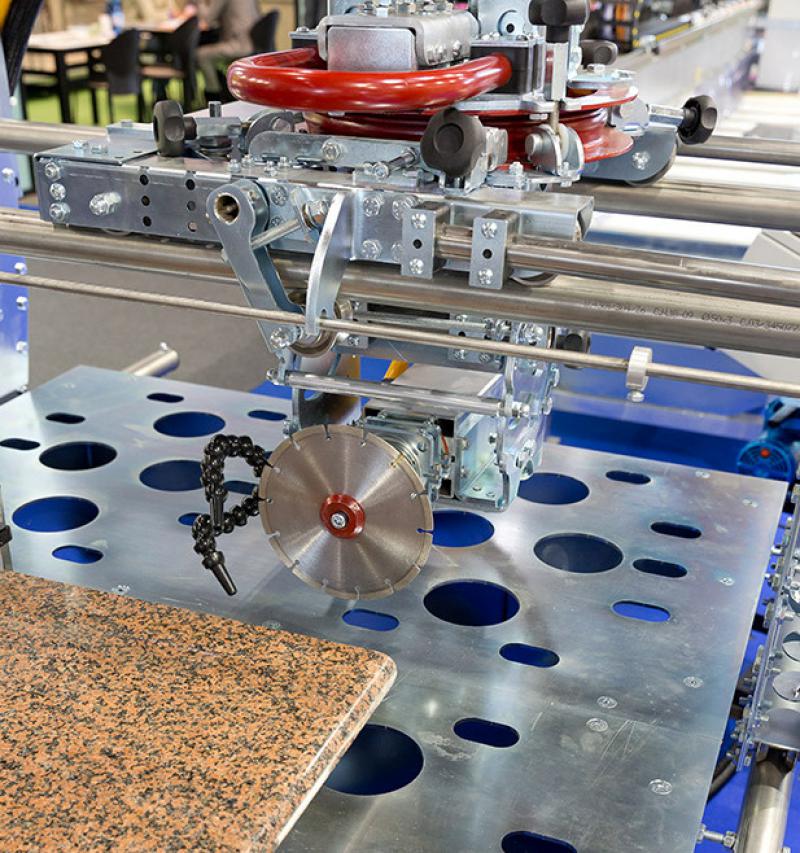

Disc holder

Disc holder

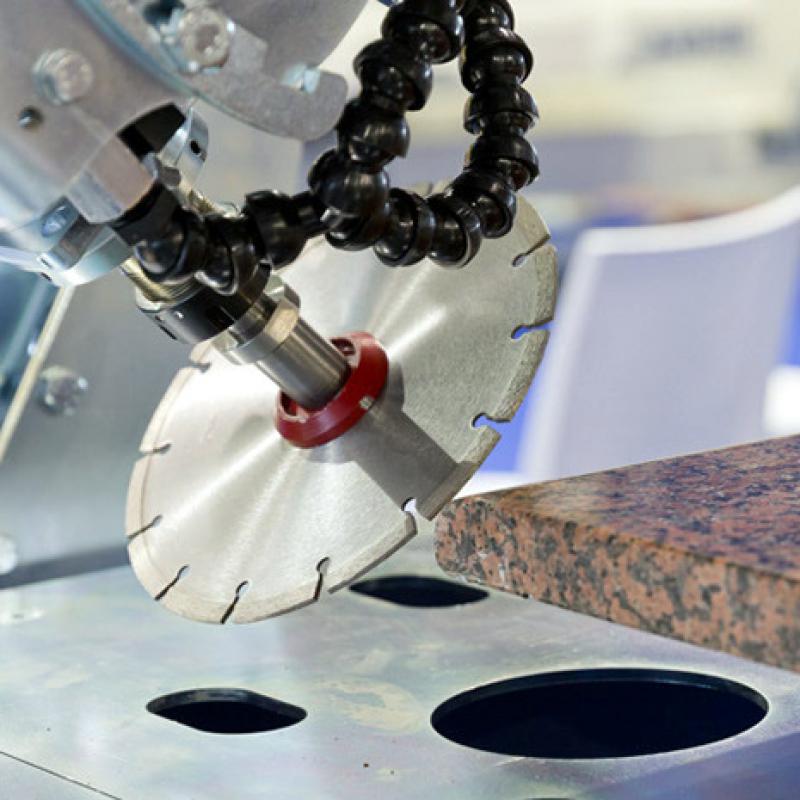

Head rotation in 4 position 0-90-180-270 degrees and possibility to mount a diamond blade diam. max 200mm, to perform cutting and mitering along X and Y axis.

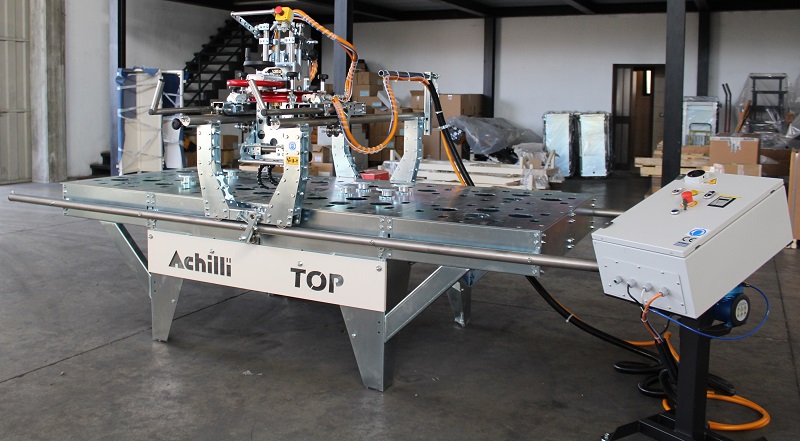

Larger version

Larger version

Larger version along Y axis from 780mm to 1200mm or 1600mm and/or X axis from 3200mm to 3950mm.

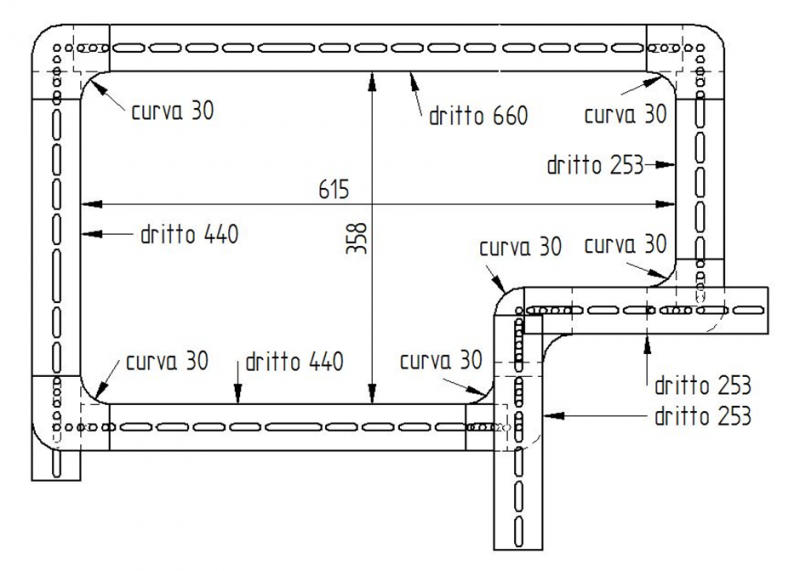

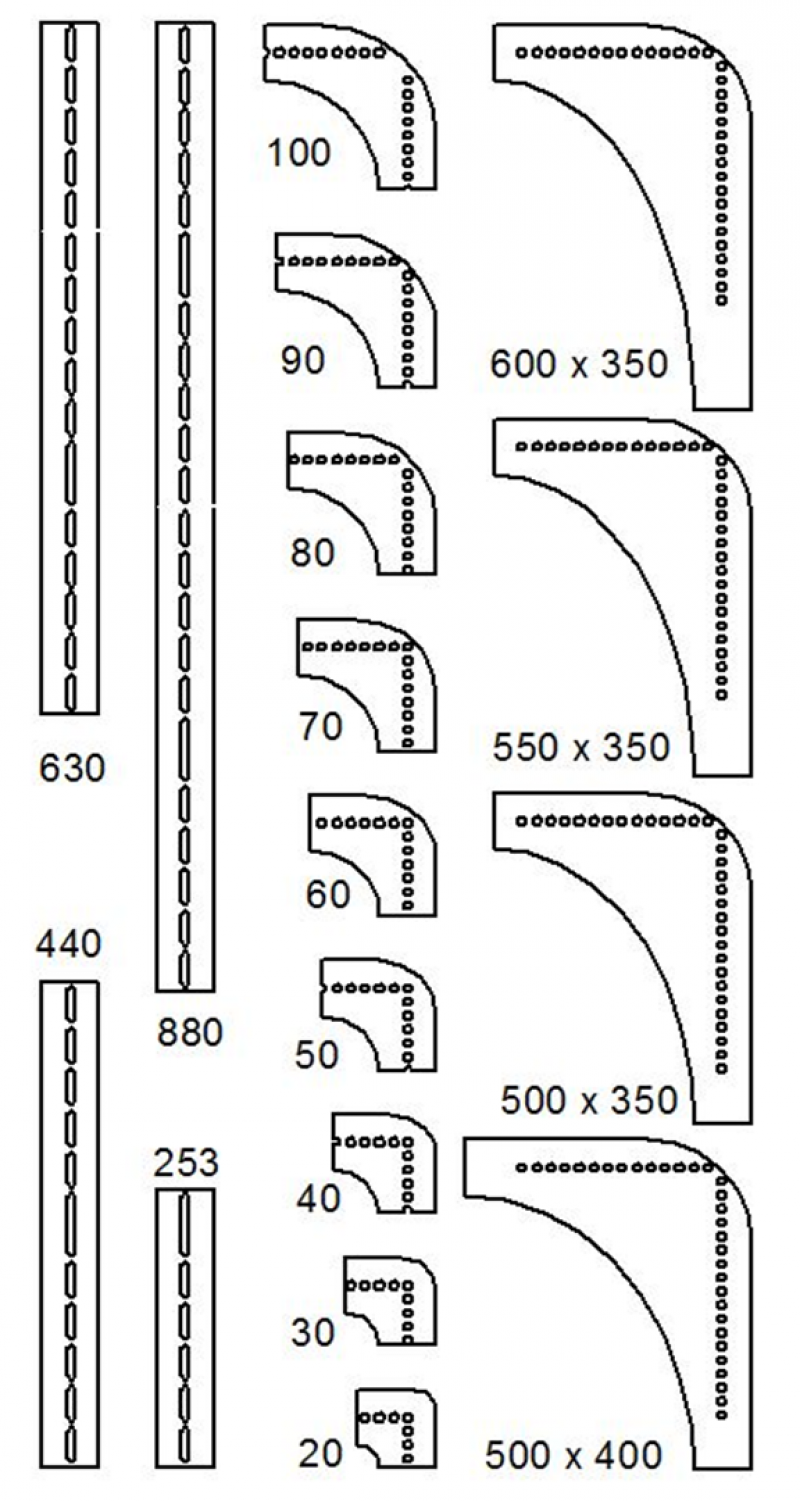

Modular template

Modular template

Straight, curve and oval template to be installed over the workpiece for sink cut out.

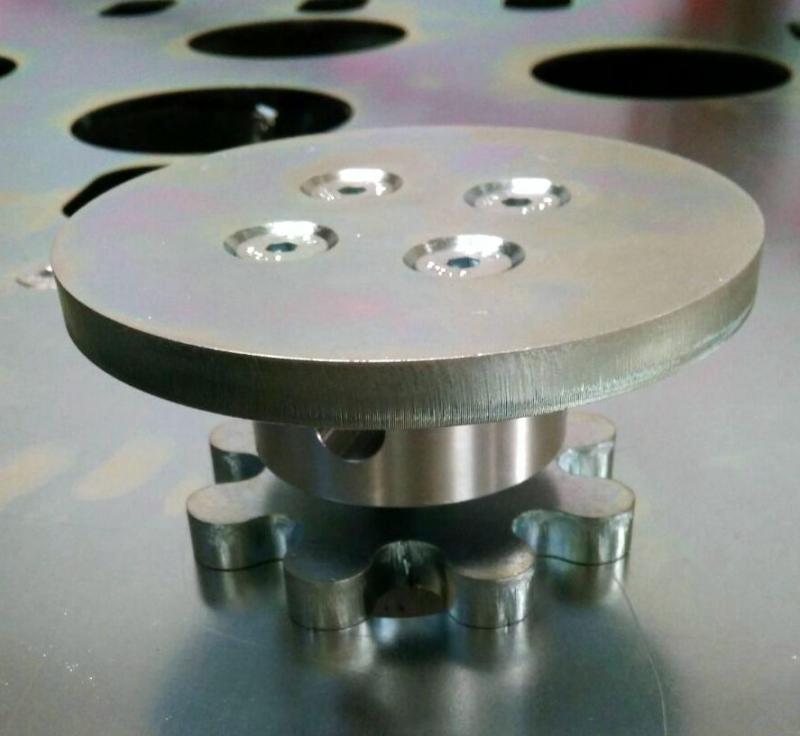

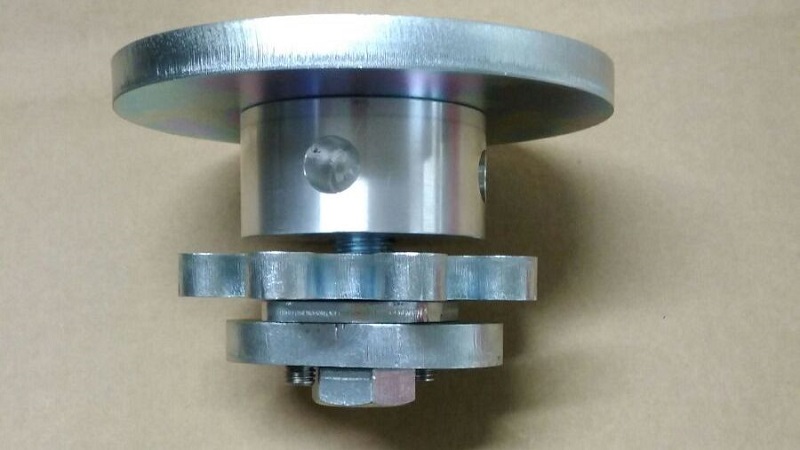

Piece holder

Piece holder

Piece holder adjustable in height for slab lifting.
